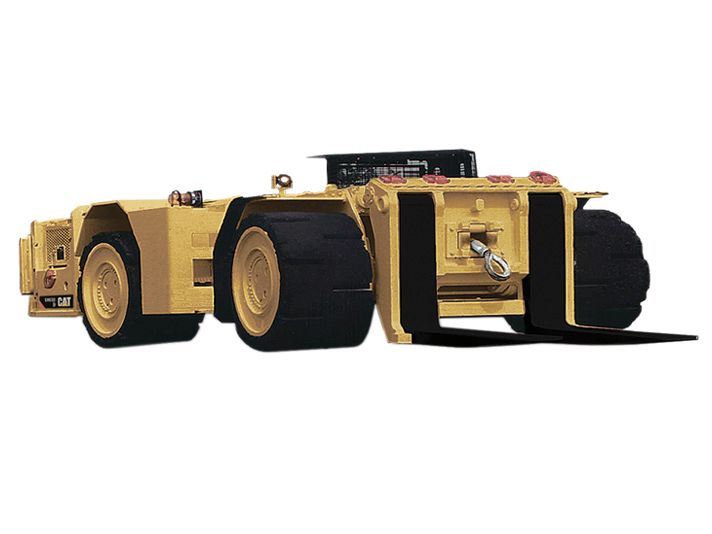

SH660 D – Roof Support Carrier

Specifications

Carry Capacity

60.0 tons

Vehicle Length

33.04 ft

Vehicle Width

10.17 ft

Frame Oscillation

8.0 Degrees

Gradients Possible (gradient data short-term only)

14.5° continuous

Ground Clearance

13.7 in

Maximum Speed

11.8 mph

Maximum Speed with Load

5.0 mph

Motor/Engine

Diesel

Power Rated at

172 kW to 202 kW (234 hp to 260 hp)

Pull Winch Rated at

20 tonnes (22 tons)/30 tonnes (33 tons)

Steering

Steering wheel

Steering Articulation

45.0 Degrees

Torque/Tractive Effort

79366.0 lb

Turn Radius (outside)

21.0 ft

Wheel Base

11.81 ft

Capacities

Capacity of Tow Hitch

88184.0 lb

Lift SAE @ 600 mm (23.6 in) from Fork Face

121250.0 lb

Maximum Un-braked Trailer Mass

50706.0 lb

Tractive Effort, Maximum

82673.0 lb

Winch (Front)

66138.0 lb

Weight

Maximum Laden

227076.0 lb

Unladen with Full Tanks

105821.0 lb

Engine (6 Cylinder)

Cooling Fan

Hydraulic Driven Fan

Cooling System

Coolant Based Radiator

Displacement

439.3 in3

Engine Make/Model

Cat® C7

Maximum Power Gross

171.5 kW (230 hp) @ 2,200 rpm

Maximum Torque Tested

895 N·m (660 lb-ft) @ 1,700 rpm

Radiator Position

Horizontal Rear

Type

Diesel, Turbocharged

Engine Speeds

High Idle

2300.0 RPM

Low Idle

800.0 RPM

Fuel Consumption

At Full Power

10.4 Gal/hr

Average Mine Duty

20-40 L/hr (5.5-10.5 gal/hr)

Exhaust Conditioner

Aftertreatment

Catalytic Exhaust Purifier

Exhaust Filter

Replaceable Element Except China

Exhaust Flame Trap

Replaceable China and RSA

Make

Caterpillar

Type

Flameproof Wet

Transmission

Speeds, Forward and Reverse

4

Torque Converter

Type

Integral

Axles

Front Axle

Heavy Duty Fixed

Rear Axle

Heavy Duty Bolster Mount

Wheels/Tires - Standard

Inflation Media

Solid

Size

1371 mm O/D × 711 mm Wide (54 in O/D × 28 in Wide)

Wheel Chains

Optional

Ground Pressure

Laden Front

222.0 psi

Laden Rear

70.0 psi

Un-laden Front

65.0 psi

Un-laden Rear

116.0 psi

Service Brake

Application

Spring Applied, Hydraulic Released

Type

Totally Enclosed, Wet Type

Park Brake

Application

Spring Applied, Hydraulic Released

Type

Totally Enclosed, Wet Type

Articulation

Degrees of Turn Either Side

45 Degree

Oscillation

Degrees Up and Down from Horizontal

7.5 Degree

Canopy

ROPS/FOPS

Optional

Type Protective Device

MDG1

Electrical System

Type

Approved Flameproof

Voltage

24.0 volts

Shutdown System

System Type

Cat DCS Electronic, Intrinsically Safe Approved

Lights

Number/Location

STD 2 Front, 2 Rear

Service Capacities

Axle Oil (Each)

15.9 gal

Drop Box Oil

2.1 gal

Engine Cooling System Water

19.0 gal

Engine Crankcase Oil

6.6 gal

Fuel Tank

97.1 gal

Hydraulic Tank

134.7 gal

Transmission/Converter Oil

10.6 gal

Water Make Up Tank

118.9 gal

Rated Speed/Un-Laden/No Grade

1st Gear

1.6 mph

2nd Gear

3.9 mph

3rd Gear

6.9 mph

4th Gear

12.1 mph

Grade Ability

Front to Rear

1:5

Side to Side (Empty)

1:4

Side to Side (Laden)

1:8
