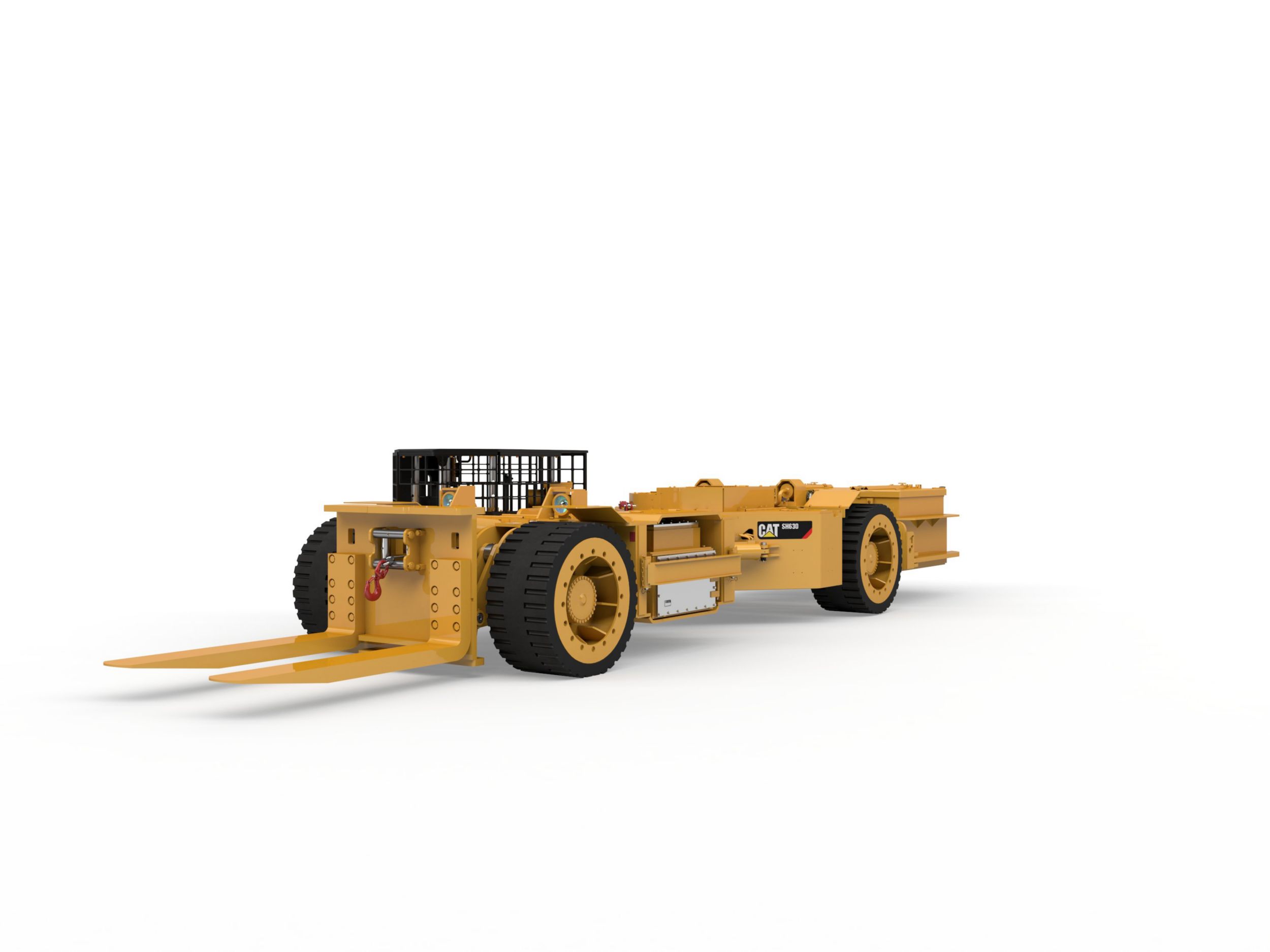

SH630 – Roof Support Carrier
The SH630 is a versatile and reliable solution for loads up to 33 tonnes (36 tons). It has been the market leader in capability for many years. The SH630 is in service in major mining operations in the United States and China.
- Technical Specs
- Carry Capacity
- 36.0 tons
- Vehicle Length
- 35.7 ft
- Vehicle Width
- 9.51 ft
- Frame Oscillation
- 40.0 Degrees
- Gradients Possible (gradient data short-term only)
- 20°
- Ground Clearance
- 15.0 in
- Maximum Speed
- 3.9 mph
- Maximum Speed with Load
- 2.2 mph
- Motor/Engine
- DC/AC
- Power Rated at
- 100.0 hp
- Pull Winch Rated at
- 23.0 tons
- Steering
- Control stick
- Steering Articulation
- 50.0 Degrees
- Torque/Tractive Effort
- 69996.0 lb
- Turn Radius (outside)
- 23.65 ft
- Wheel Base
- 16.83 ft
- Empty Weights - Less Battery
- 49500.0 lb
- Empty Weights - With 64-125-25 Battery
- 74000.0 lb
- Empty Weights - With 64-125-25 Battery and Rear Ballast
- 80000.0 lb
- Tram Speed (calculated based on 2% rolling resistance) - Level and Empty on 0% Grade
- 3.6 mph
- Tram Speed (calculated based on 2% rolling resistance) - Level and Loaded on 0% Grade
- 3.2 mph
- Cab Height with 508 mm (20 in) Cab - with 1219.4 mm (48 in) Tires
- 68.0 in
- Chassis Height with 1219.4 mm (48 in) Tires
- 48.0 in
- Frame Oscillation
- 40 Degrees Total
- Ground Clearance with 1219.4 mm (48 in) Tires
- 16.0 in
- Inside Turn Radius
- 13.58 ft
- Length with 2133.6 mm (84 in) Lifting Fork
- 34.33 ft
- Length with 2133.6 mm (84 in) Lifting Fork and Rear Ballast
- 35.17 ft
- Length with Lift Plate Attachment
- 35.75 ft
- Length with Lift Plate Attachment and Rear Ballast
- 36.58 ft
- Length without Attachments and with Rear Ballast
- 28.67 ft
- Outside Turn Radius
- 23.67 ft
- Overall Length without Attachments
- 27.83 ft
- Overall Width with Attachments
- 9.25 ft
- Steering Articulation
- 100 Degrees Total
- Wheelbase
- 16.33 ft
