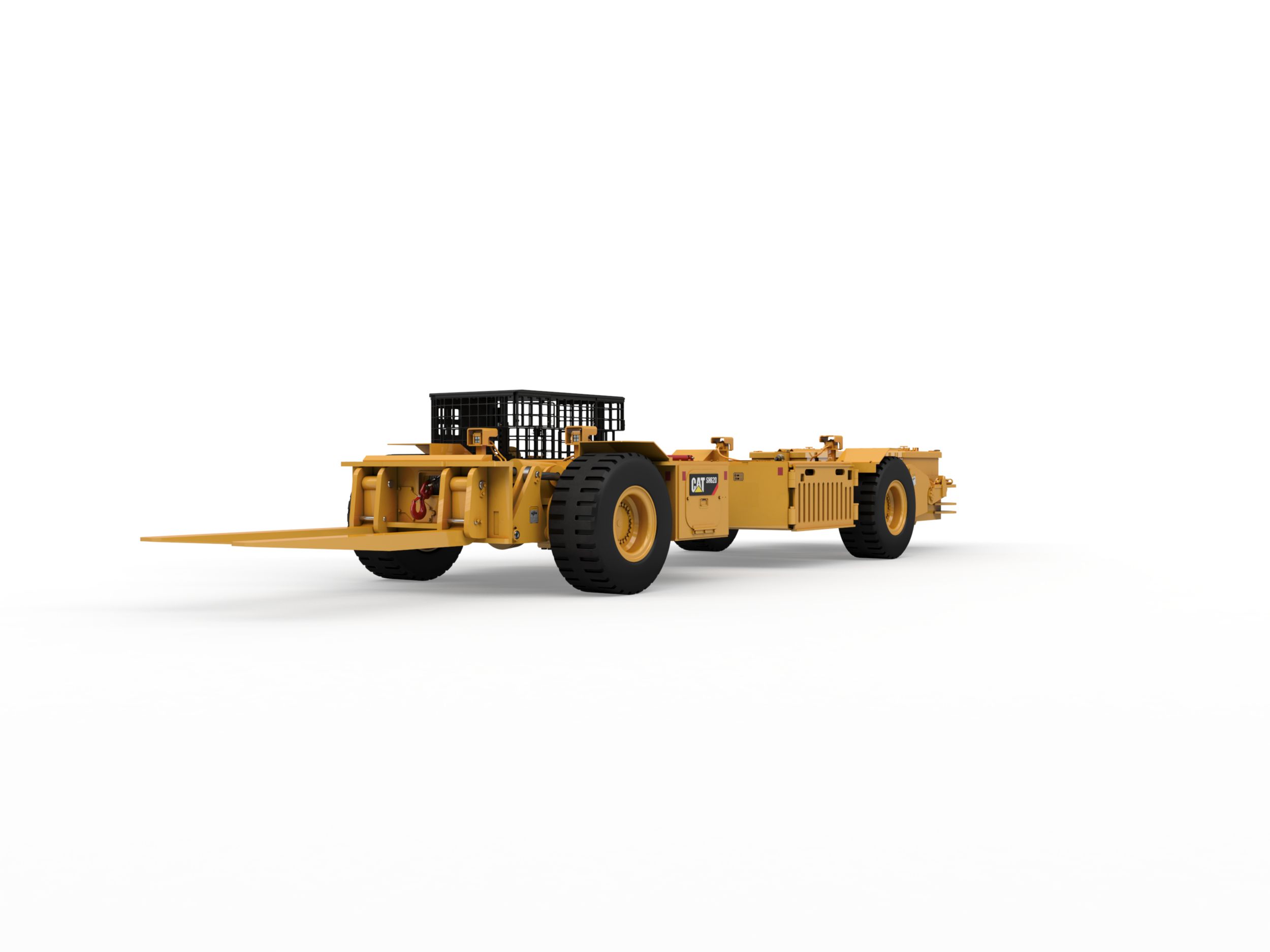

SH620 – Roof Support Carrier
The new 20 tonne (22 ton) SH620 is the smallest model. It provides customers with more options to ensure the right size vehicle for their operation.
- Technical Specs
- Carry Capacity
- 22.0 tons
- Vehicle Length
- 31.17 ft
- Vehicle Width
- 9.35 ft
- Frame Oscillation
- 40.0 Degrees
- Gradients Possible (gradient data short-term only)
- 20°
- Ground Clearance
- 14.0 in
- Maximum Speed
- 4.0 mph
- Maximum Speed with Load
- 3.3 mph
- Motor/Engine
- DC/AC
- Power Rated at
- 100.0 hp
- Pull Winch Rated at
- 15.0 tons
- Steering
- Control stick
- Steering Articulation
- 50.0 Degrees
- Torque/Tractive Effort
- 57480.0 lb
- Turn Radius (outside)
- 24.18 ft
- Wheel Base
- 14.17 ft
- Empty Weights - Less Battery
- 46400.0 lb
- Empty Weights - With 64SS125-21 Battery
- 62000.0 lb
- Tram Speed
- 5.0 mph
- Cab Height - Standard Cabs with 1117.6 mm (44 in) Tires
- Adjust from 1397 mm-1651 mm (Adjust from 55 in-65 in)
- Cab Height - Standard Cabs with 965.2 mm (38 in) Tires
- Adjust from 1320.8 mm-1574.8 mm (Adjust from 52 in-62 in)
- Chassis Height (Nominal) - With 1117.2 mm (44 in) Tires
- 3.33 ft
- Chassis Height (Nominal) - With 965.2 mm (38 in) Tires
- 3.08 ft
- Frame Oscillation
- 40 Degrees Total
- Ground Clearance (Nominal) - With 1117.2 mm (44 in) Tires
- 14.0 in
- Ground Clearance (Nominal) - With 965.2 mm (38 in) Tires
- 11.0 in
- Inside Turn Radius
- 13.17 ft
- Length Less Load Lifting and Battery Tray
- 25.83 ft
- Length with 2082.8 mm (82 in) Lifting Fork
- 33.67 ft
- Length with Lift Plate Attachment
- 36.25 ft
- Outside Turn Radius
- 23.17 ft
- Overall Width - With Attachments and 1117.6 mm (44 in) Tires
- 9.5 ft
- Overall Width - With Attachments and 965.2 mm (38 in) Tires
- 9.33 ft
- Steering Articulation
- 110 Degrees Total
- Wheelbase
- 16.25 ft
