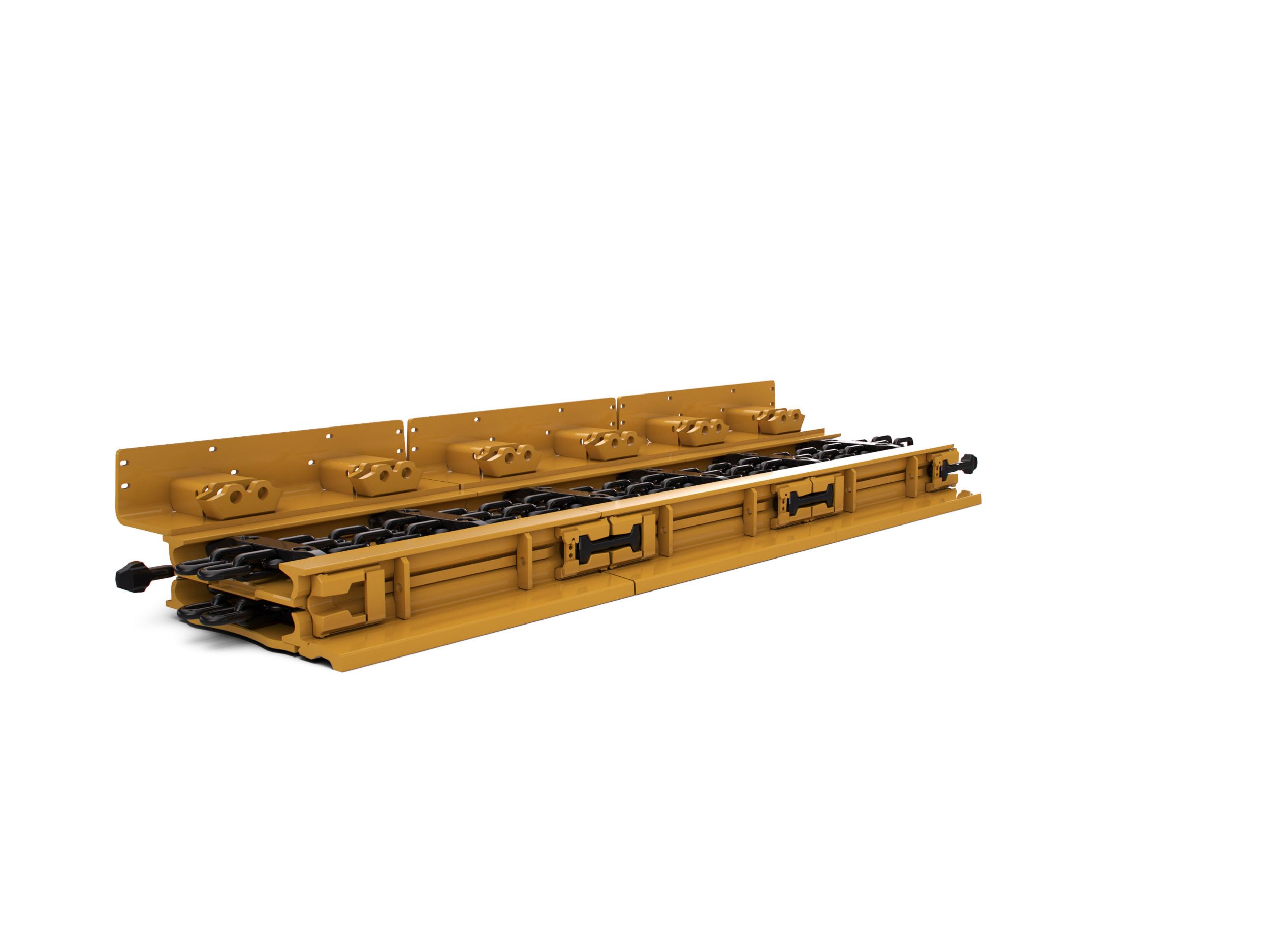

Face Conveyor – PF4
Moving Mountains – No matter how fast your shearer can cut, you can’t keep cutting until you move the coal away from the face. Cat® Armored Face Conveyors (AFCs) are designed to keep things moving and to carry the maximum possible amount of coal smoothly away from the coalface. They are designed for high availability and economy in operation. They are easy to maintain and offer long service life and a great return on investment to mine operators.
- Technical Specs
- Top Plate Thickness
- 40 mm (1.57 in)
- Bottom Plate Thickness
- 0.98 in
- Dogbone Breaking Force
- 809312.0 lb
- Bottom Plate Thickness
- 0.98 in
- Chain Strands - PF4/1032
- AKB Fl30×108; DKB 34×126; DKB 42×146
- Chain Strands - PF4/1132
- DKB 34×126; DKB 42×146; DKB 48×160/144
- Chain Strands - PF4/1332
- DKB 42×146; DKB 48×160/144
- Chain Strands - PF4/832
- AKB Fl30×108; DKB 34×126
- Chain Strands - PF4/932
- AKB Fl30×108; DKB 34×126
- Conveying Capacity - PF4/1032
- 4.95 ft2
- Conveying Capacity - PF4/1132
- 6.24 ft2
- Conveying Capacity - PF4/1332
- 9.15 ft2
- Conveying Capacity - PF4/832
- 2.8 ft2
- Conveying Capacity - PF4/932
- 3.87 ft2
- Deck Plate Thickness
- 1.57 in
- Dogbone Breaking Strength - PF4/1032
- 3000-3600 kN (337.21-404.65 tonf)
- Dogbone Breaking Strength - PF4/1132
- 3000-3600 kN (337.21-404.65 tonf)
- Dogbone Breaking Strength - PF4/1332
- 3000-3600 kN (337.21-404.65 tonf)
- Dogbone Breaking Strength - PF4/832
- 3000 kN (337.21-404.65 tonf)
- Dogbone Breaking Strength - PF4/932
- 3000 kN (337.21 tonf)
- Dogbone Housing FoS
- 1.5 times
- Flightbar Width - PF4/1032
- 34.96 in
- Flightbar Width - PF4/1132
- 38.89 in
- Flightbar Width - PF4/1332
- 46.77 in
- Flightbar Width - PF4/832
- 46.77 in
- Flightbar Width - PF4/932
- 31.02 in
- Horizontal Articulation
- 0.8°-1.2°
- Line Pan Width - PF4/1032
- 40.62 in
- Line Pan Width - PF4/1132
- 44.56 in
- Line Pan Width - PF4/1332
- 52.44 in
- Line Pan Width - PF4/832
- 52.44 in
- Line Pan Width - PF4/932
- 36.69 in
- Profile Height
- 11.18 in
- Shear Strength
- 4000 kN (449.61 tonf)
- Vertical Articulation
- up to ±6°
