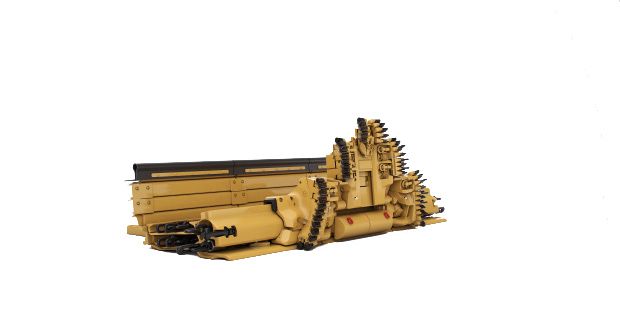

GH1600 Automated Plow System

GH1600 Automated Plow System

Continue Browsing

The Gleithobel Plow System GH1600 was specifically developed for very hard coal and high productivity by doubling the installed power of the GH800 to 1600 kW (1,080 hp). It can be used in seams from approximately 1.0 m (39 in) up to 2.53 m (91 in) with a portal arm.

Specifications

Coal Hardness
Medium to extremely hard coal
Maximum Installed Power
2 × 800 kW (2 × 1,080 hp)
Maximum Cutting Depth
8.27 in

Mining Height

Mining Height
1.1 m-2.3 m (43 in-90 in)

Coal Hardness

Type of Coal
Medium to extremely hard coal

Power

Maximum Installed Power
2 × 800 kW (2 × 1,080 hp)
Maximum Plow Speed
3.6 m/sec (720 fpm)

Cutting

Maximum Cutting Depth
8.27 in

Technical Data

Bottom Bit Positions - Position 1
+12 mm (+0.04 ft)
Bottom Bit Positions - Position 2
-10 mm (-0.03 ft)
Bottom Bit Positions - Position 3
-21 mm (-0.07 ft)
Bottom Bit Positions - Position 4
-35 mm (-0.11 ft)
Cutting Depth
0.69 ft
Maximum Drive Power
2 × 800 kW (2 × 1,080 hp)
Mechanical Height Adjustment
180-300 mm (0.59-0.98 ft)
Plow Heights (with gobside support)
1860-2160 mm (6.10-7.08 ft)
Plow Heights - Height 1
980-1230 mm (3.22-4.04 ft)
Plow Heights - Height 2
1180-1480 mm (3.87-4.86 ft)
Plow Heights - Height 3
1445-1745 mm (4.73-5.73 ft)
Plow Length
9.74 ft
Weights
5600-8600 kg (12,345-18,960 lb)
