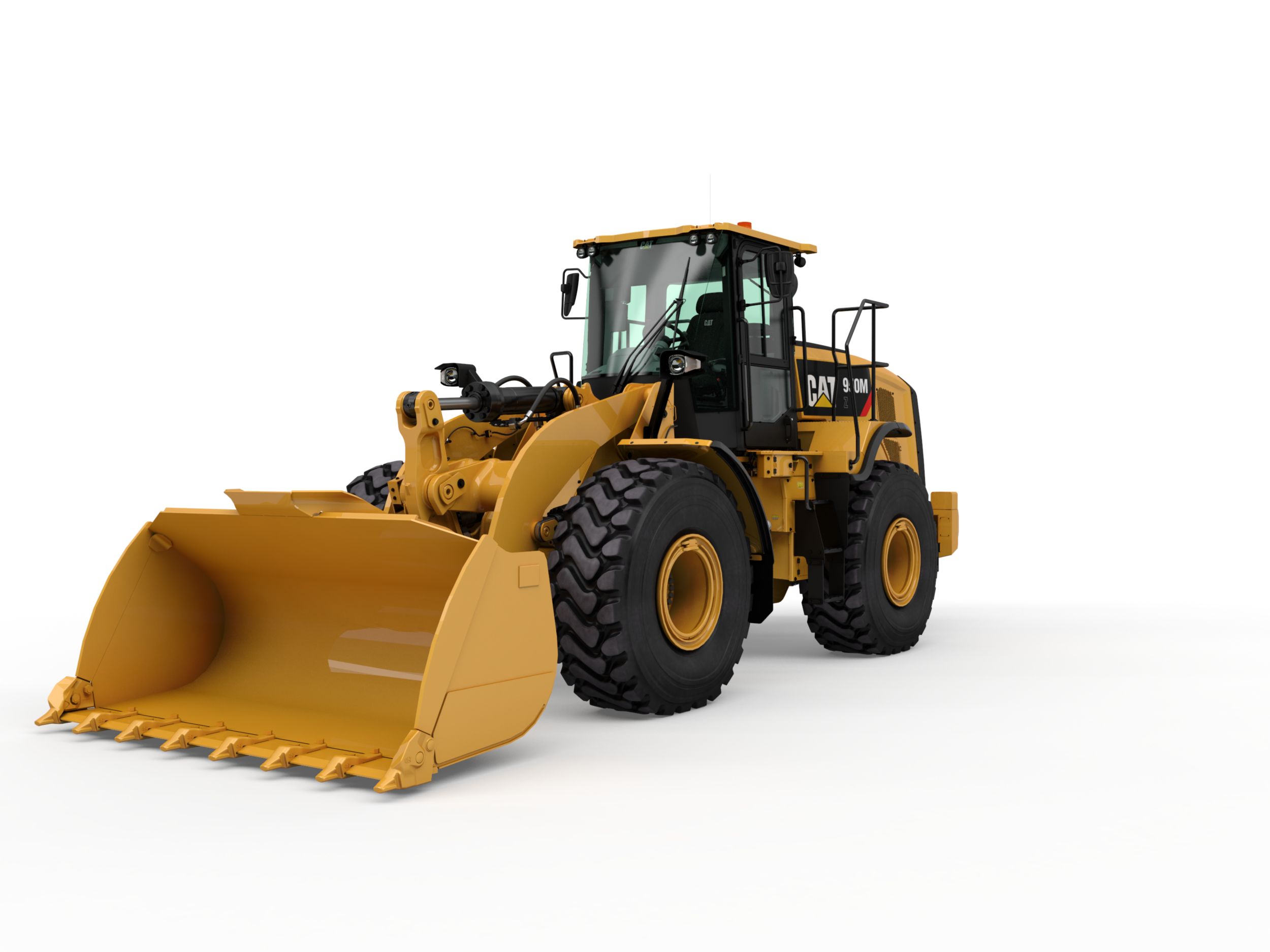

950M Wheel Loader

950M Wheel Loader

Download the Product Brochure
Continue Browsing

The new 950M Wheel Loader, with the 2017 product update, applies proven technologies systematically and strategically to meet your high expectations for reliability, productivity, fuel efficiency, and long service life. Meets U.S. EPA Tier 4 Final and EU Stage IV emission standards.

Engine

Net Power - ISO 9249
230 hp
Engine Model
Cat C7.1 ACERT
Displacement
428 in3
Maximum Power @ 2,100 rpm – SAE J1995
250 hp
Maximum Power @ 2,100 rpm – ISO 14396
249 hp
Maximum Power @ 2,100 rpm – ISO 14396 (metric)
253 hp
Maximum Net Power @ 2,100 rpm – SAE J1349
230 hp
Maximum Net Power @ 2,100 rpm – ISO 9249
230 hp
Maximum Net Power @ 2,100 rpm – ISO 9249 (metric)
232 hp
Peak Gross Torque (1,300 rpm) – SAE J1995
911 lbf-ft
Peak Gross Torque (1,300 rpm) – ISO 14396
908 lbf-ft
Maximum Net Torque (1,300 rpm)
858 lbf-ft
Note
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.6 kg of refrigerant which has a CO2 equivalent of 2.288 metric tonnes.

Weights

Operating Weight
42357 lb
Note
Weight based on a machine configuration with Michelin 23.5R25 XHA2 L3 radial tires, full fluids, operator, standard counterweight, cold start, roading fenders, Product Link™, manual diff lock/open axles (front/rear), power train guard, secondary steerin

Buckets

Bucket Capacities
2.5-9.2 m³ (3.3-12.0 yd³)

Operating Specifications

Breakout Force
40690 lbf
Static Tipping Load – Full 40° Turn – with Tire Deflection
24262 lb
Static Tipping Load – Full 40° Turn – No Tire Deflection
25926 lb
Note
For a machine configuration as defined under “Weight.”
Note
Full compliance to ISO 143971:2007 Sections 1 thru 6, which requires 2% verification between calculations and testing.

Transmission

Forward 1
4.3 mph
Forward 2
7.5 mph
Forward 3
12.0 mph
Forward 4
16.0 mph
Reverse 1
4.3 mph
Reverse 2
7.5 mph
Reverse 3
16.0 mph
Forward 5
24.5 mph
Note
Maximum travel speed in standard vehicle with empty bucket and standard L3 tires with 787 mm (31 in) roll radius.

Hydraulic System

Implement Pump Type
Variable Axial Piston
Implement System: Maximum Pump Output (2,150 rpm)
76 gal/min
Implement System: Maximum Operating Pressure
4250 psi
Hydraulic Cycle Time – Total
8.9 Seconds

Service Refill Capacities

Cooling System
15.6 gal
Crankcase
5.8 gal
Transmission
11.4 gal
Differentials and Final Drives – Front
11.4 gal
Differentials and Final Drives – Rear
11.4 gal
Hydraulic Tank
33.0 gal
Fuel Tank
72.6 gal
DEF Tank
4.2 gal

Sound

With Cooling Fan Speed at Maximum Value: Operator Sound Pressure Level (ISO 6396:2008)
70 dB(A)
With Cooling Fan Speed at Maximum Value: Exterior Sound Power Level (ISO 6395:2008)
107 dB(A)
With Cooling Fan Speed at Maximum Value: Exterior Sound Pressure Level (SAE J88:2013)
75 dB(A)*
Note
*Distance of 15 m (49.2 ft), moving forward in second gear ratio.
With Cooling Fan Speed at 70% of Maximum Value**: Operator Sound Pressure Level (ISO 6396:2008)
69 dB(A)
With Cooling Fan Speed at 70% of Maximum Value**: Exterior Sound Power Level (ISO 6395:2008)
104 LWA***
Note
**For machines in European Union countries and in countries that adopt the “EU Directives.”
Note
***European Union Directive “2000/14/EC” as amended by “2005/88/EC.”

Bucket Capacities

Bucket Range
2.5-9.2 m³ (3.3-12.0 yd³)

Dimensions – Standard Lift

Height to Top of Hood
8.83 ft
Height to Top of Exhaust Pipe
11.17 ft
Height to Top of ROPS
11.33 ft
Ground Clearance
1.17 ft
Center Line of Rear Axle to Edge of Counterweight
6.33 ft
Center Line of Rear Axle to Hitch
5.50 ft
Wheelbase
11.00 ft
Overall Length (without bucket)
22.67 ft
Hinge Pin Height at Carry Height
2.08 ft
Hinge Pin Height at Maximum Lift
13.25 ft
Lift Arm Clearance at Maximum Lift
10.75 ft
Rack Back at Maximum Lift
59 degrees
Rack Back at Carry Height
49 degrees
Rack Back at Ground
36 degrees
Maximum Width over Tires (loaded)
9.25 ft
Tread Width
7.00 ft
Note
All dimensions are approximate and based on Michelin 23.5R25 XHA2 L3 radial tires.

Dimensions – High Lift

Height to Top of Hood
8.83 ft
Height to Top of Exhaust Pipe
11.17 ft
Height to Top of ROPS
11.33 ft
Ground Clearance
1.17 ft
Center Line of Rear Axle to Edge of Counterweight
6.33 ft
Center Line of Rear Axle to Hitch
5.50 ft
Wheelbase
11.00 ft
Overall Length (without bucket)
24.58 ft
Hinge Pin Height at Carry Height
2.58 ft
Hinge Pin Height at Maximum Lift
14.83 ft
Lift Arm Clearance at Maximum Lift
11.92 ft
Rack Back at Maximum Lift
59 degrees
Rack Back at Carry Height
49 degrees
Rack Back at Ground
40 degrees
Maximum Width over Tires (loaded)
9.25 ft
Tread Width
7.00 ft
Note
All dimensions are approximate and based on Michelin 23.5R25 XHA2 L3 radial tires.
