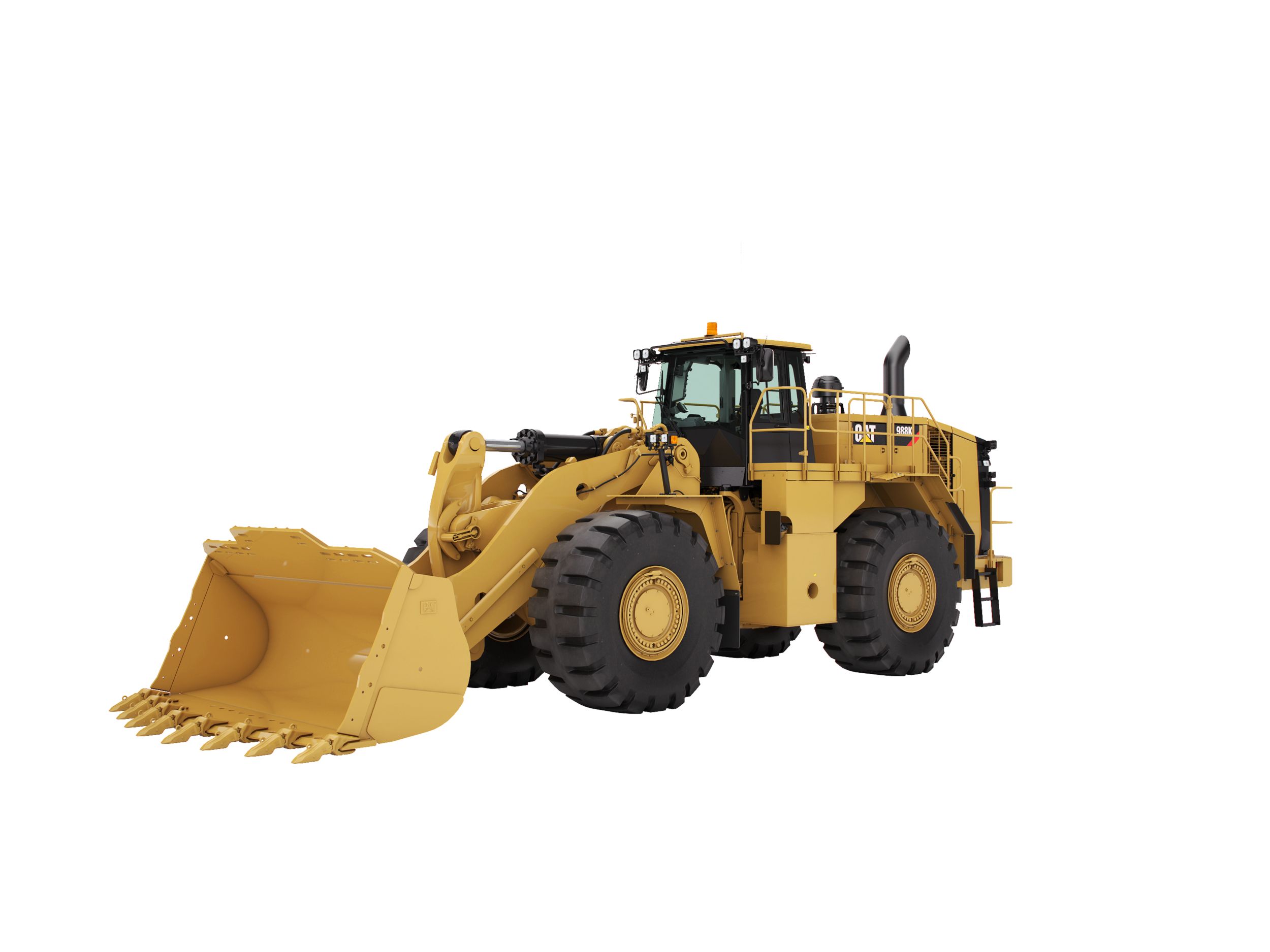

988K Wheel Loader
Cat® Large Wheel Loaders are designed with durability built in, ensuring maximum availability through multiple life cycles. With optimized performance and simplified serviceability, our machines allow you to move more material efficiently and safely at a lower cost per ton. Introduced in 1963, the 988 has been the industry leader for 50 years. Focused on helping our customers succeed, we have continued to build upon each new series. The 988K continues our legacy of reliability, performance, safety, operator comfort, serviceability, and efficiency.
- Technical Specs
- Standard Equipment
- Optional Equipment
- Net Power
- 541.0 hp
- Engine Model
- Cat® C18 ACERT™
- Bore
- 5.7 in
- Stroke
- 7.2 in
- Displacement
- 1105.0 in3
- Torque Rise
- 58.0 %
- Rated Speed
- 1,700 rpm
- Net Power – SAE J1349
- 541.0 hp
- Emissions
- U.S. EPA Tier 4 Final/EU Stage IV OR Tier 3/Stage IIIA Equivalent OR Tier 2/Stage II Equivalent
- Gross (ISO 14396)
- 580.0 hp
- Peak Power Speed
- 1,500 rpm
- Peak Power Speed @ 1,500 rpm: Gross – ISO 14396
- 580.0 hp
- Peak Power Speed @ 1,500 rpm: Gross – SAE J1995
- 588.0 hp
- Peak Power Speed @ 1,500 rpm: Net Power – SAE J1349
- 541.0 hp
- Peak Torque @ 1,200 rpm
- 2104.0 lb ft
- Operating Weight
- 112574.0 lb
- Bucket Capacity Range
- 4.7-13 m3 (6.2-17 yd3)
- Rated Payload – High Lift
- 12.5 tons
- Rated Payload – Quarry Face
- 12.5 tons
- Rated Payload – Loose Material
- 16 tons
- Cat Truck Match – Standard
- 770-772
- Cat Truck Match – High Lift
- 773-775
- Transmission Type
- Cat planetary power shift
- Forward 1
- 4.0 mph
- Forward 2
- 7.2 mph
- Forward 3
- 12.7 mph
- Forward 4
- 21.6 mph
- Reverse 1
- 4.7 mph
- Reverse 2
- 8.3 mph
- Reverse 3
- 14.4 mph
- Direct Drive Forward 1
- Lock-up disabled
- Direct Drive Forward 2
- 7.8 mph
- Direct Drive Forward 3
- 13.9 mph
- Direct Drive Forward 4
- 24.4 mph
- Direct Drive Reverse 1
- 5.0 mph
- Direct Drive Reverse 2
- 8.9 mph
- Direct Drive Reverse 3
- 15.8 mph
- Cylinders, Double Acting: Lift, Bore and Stroke
- 210 mm × 1050 mm (8.7 in × 41.3 in)
- Cylinders, Double Acting: Tilt, Bore and Stroke
- 269 mm × 685 mm (8.7 in × 27 in)
- Lift/Tilt System
- Variable displacement piston
- Maximum Flow
- 13.7 gal/min
- Maximum Flow at 1,400-1,860 rpm
- 153.0 gal/min
- Pilot System
- Variable displacement piston
- Relief Valve Setting
- 551 psi
- Lift/Tilt System – Circuit
- EH- Positive Flow Control, Flow Sharing
- Relief Valve Setting – Lift/Tilt
- 4757 psi
- Fuel Tank
- 188.0 gal
- Cooling System
- 31.7 gal
- Crankcase
- 15.9 gal
- Transmission
- 31.7 gal
- Hydraulic System (tank only)
- 63.4 gal
- Differentials and Final Drives – Front
- 49.1 gal
- Differentials and Final Drives – Rear
- 49.1 gal
- Diesel Exhaust Fluid Tank (for Tier 4 Final/Stage IV only)
- 8.7 gal
- Hydraulic System Factory Fill
- 125.5 gal
- Coolant (validated by test cell fill quantities)
- 33 gal
- Transmission (validated by test cell fill quantities)
- 29 gal
- Bucket Capacities
- 4.7-13 m3 (6.2-17 yd3)
- Front
- Fixed
- Rear
- Trunnion
- Oscillation Angle
- 13°
- Brakes
- SAE J1473 OCT90, ISO 3450:1992
- Steering System – Circuit
- Pilot, load sensing
- Steering System – Pump
- Piston, variable displacement
- Relief Valve Setting – Steering
- 4351.0 psi
- Maximum Flow
- 71.3 gal/min
- Steering Cycle Time (high idle)
- 3.4 sec
- Steering Cycle Time (low idle)
- 5.6 sec
- Total Steering Angle
- 86°
- Dump
- 2.2 Seconds
- Lower Float Down
- 3.5 Seconds
- Rackback
- 4.5 Seconds
- Raise
- 8.0 Seconds
- Total Hydraulic Cycle Time (empty bucket)
- 18.2 Seconds
- Machine Sound Level (ISO 6395)
- 111 dB(A)
- Operator Sound Level (ISO 6396)
- 72 dB(A)
- Machine Sound Level (ISO 6395)
- 109 dB(A)
- Operator Sound Level (ISO 6396)
- 72 dB(A)
- Operator Sound Level (ISO 6396)
- 73 dB(A)
- Machine Sound Level (ISO 6395)
- 112 dB(A)
- Operator Sound Level (ISO 6396)
- 72 dB(A)
- Machine Sound Level (ISO 6395)
- 110 dB(A)
-
ELECTRICAL
- Alarm, back-up
- Alternator, single 150 amp
- Batteries, dry
- Converter, 10/15 amp, 24V to 12V
- Lighting system (halogen, work lights, access and service platform lighting)
- Starting and charging system, 24V
- Starter emergency start receptacle
- Starter lockout in bumper
- Transmission lockout in bumper
-
OPERATOR ENVIRONMENT
- Graphical Information Display, displays real time operating information, performs calibrations and customizes operator settings
- Air conditioner
- Cat Detect Vision, rear vision camera system
- Cab, sound suppressed and pressurized, integrated rollover protective structure (ROPS/FOPS) radio ready for entertainment, includes antenna, speakers and converter (12-volt 5-amp) and power port
- Controls, lift and tilt function
- Heater, defroster
- Horn, electric
- Instrumentation, gauges: – Coolant temperature – Engine hour meter – Hydraulic oil temperature – Power train oil temperature
- Light, cab, dome
- Lunchbox, beverage holders
- Mirrors, rearview (externally mounted)
- Rimpull Control System
- Seat, Cat Comfort (cloth), air suspension, six-way adjustable
- Seat belt minder
- Seat belt, retractable, 76 mm (3 in) wide
- STIC Control System
- UV glass
- Transmission gear indicator
- Vital Information Management System (VIMS) with Graphical Information Display: External Data Port, Customizable Operator Profiles, Cycle Timer, Integrated Payload Control System
- Wet-Arm wipers/washers (front and rear): – Intermittent front and rear wipers
- Lights, directional
-
POWER TRAIN
- Brakes, oil-cooled, multi-disc, service/secondary
- Case drain screens
- Crankcase guard
- Electro hydraulic parking brake
- Engine, C18 ACERT MEUI diesel, turbocharged/aftercooled
- Ground level engine shutoff
- Turbine precleaner, engine air intake
- Radiator, Aluminum Modular Radiator (AMR)
- Starting aid, ether, automatic
- Throttle lock, electronic
- Torque converter, Impeller Clutch (ICTC) with Lock up clutch (LUC), Rimpull Control System
- Transmission, planetary powershift, 4F/3R electronic control
- Manual switch and automatic fuel priming
- Cat Production Measurement ready
-
OTHER
- Automatic bucket lift kickout/positioner
- Base machine price includes a rim allowance
- Hydraulically driven demand fan
- Couplings, Cat O-ring face seals
- Doors, service access (locking)
- Ecology drains for engine, radiator, hydraulic tank
- Fuel tank, 731 L (188 gal)
- Hitch, drawbar with pin
- Hoses, Cat XT™
- Hydraulic, steering and brake filtration/screening system
- Cat Clean Emission Module
- Oil sampling valves
- Premixed 50% concentration of extended life coolant with freeze protection to –34° C (–29° F)
- Rear access to cab and service platform
- Steering, load sensing
- Toe kicks
- Vandalism protection caplocks
-
POWER TRAIN
- –50° C (–58° F) antifreeze
- Engine oil change system, high speed, Wiggins
- Engine block heater 120V or 240V
- High ambient cooling – software
- Cat Production Measurement
-
OPERATOR ENVIRONMENT
- Cab precleaner
- AM/FM/CD/MP3 radio
- Satellite Sirius radio with bluetooth
- LED warning strobe
- CB radio ready
- Window pull down visor
- Handrail mounted mirrors
-
MISCELLANEOUS ATTACHMENTS
- Front and rear roading fenders
- Fast fill fuel system (Shaw-Aero)
- Cold Weather Starting (extra starter plus two batteries)
- Aggregate Handler
