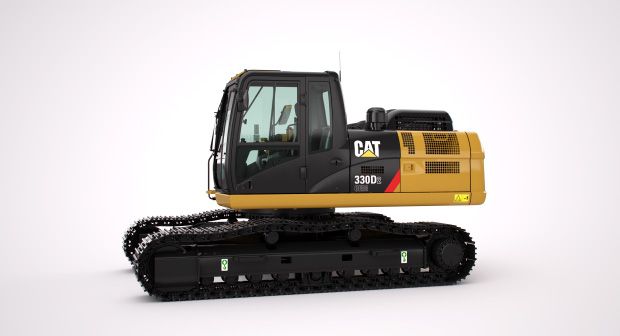

330D2 L Hydraulic Excavator

330D2 L Hydraulic Excavator

Continue Browsing

The 330D2 L OEM comes with a number of new developments and features to help you make the best use of your machine. Isochronous engine speed control, a new fuel filtration system, a built-in economy mode to save up to a 15% fuel consumption and energy. A variable speed fan with viscous clutch makes this machine productive, efficient and safe.

Engine

Engine Model
Cat® C7.1
Net Flywheel Power
209 hp
Bore
4.13 in
Stroke
5.31 in
Displacement
428 in3
Engine Power (ISO 14396)
213 hp
Hi-Idle Speed
1700 rpm
Low-Idle Speed
950 rpm
Maximum Altitude (with derate)
16404 ft
Maximum Altitude (without derate)
9842 ft
Maximum Torque (torque peak) @ 1,400 rpm
663.8 lbf-ft
Net Power (SAE J1349/ISO 9249)
209 hp
Rated Speed (engine)
1800 rpm
Type
Direct Injection
Note
The C7.1 engine meets EPA Tier 3, EU Stage III emission regulations.

Weights

Maximum Operating Weight*
66970 lb
Frontless Weight
51700 lb
*Note
*Dependent on application, Review

Service Refill Capacities

Fuel Tank Capacity
137.4 gal
Cooling System
8.2 gal
Engine Oil
5.8 gal
Swing Drive
2.6 gal
Final Drive (each)
1.6 gal
Hydraulic System (including tank)
81.9 gal
Hydraulic Tank
67.9 gal

Swing Mechanism

Swing Speed
9.6 rpm
Swing Torque
60627.6 lbf-ft

Drive

Maximum Drawbar Pull
55752.6 lbf
Maximum Travel Speed
3.4 mph

Hydraulic System

Pilot System – Maximum Flow
6.1 gal/min
Pilot System – Maximum Pressure
568.6 psi
Main System – Maximum Flow (each) at Operation (1,700 rpm)
240 × 2 (480 total) L/min [63.4 × 2 (126.8 total) gal/min]
Main System – Maximum Flow at Travel H/L (1,800 rpm)
254 × 2 (508 total) L/min [67.1 × 2 (134.2 total) gal/min]
Main System – Maximum Flow at Travel L/L (1,750 rpm)
247 × 2 (494 total) L/min [65.2 × 2 (130.4 total) gal/min]
Maximum Pressure – Equipment
5076.4 psi
Maximum Pressure – Swing
3982.7 psi
Maximum Pressure – Travel
5076.4 psi
Swing System – Maximum Flow
63.4 gal/min

Standards

Brakes
SAE J1026/APR90
Cab/FOGS
SAE J1356 FEB88; ISO 10262
Cab/ROPS
ISO 12117-2:2008

Sound Performance

ISO 6396 – Operator Noise (Closed)
71 dB(A)
ISO 6395 – Spectator Noise
104 dB(A)
  • ENGINE
    • C7.1 electronic control engine
    • Meets EU Stage III and EPA Tier 3 emission regulations
    • 3000 m (9,842 ft) altitude capability without derating (Maximum 5000 m [16,404 ft] with derate from 3000 m [9,842 ft])
    • Radial seal air filters (primary and secondary filter)
    • Glow plugs
    • Automatic engine speed control with one touch low idle
    • High ambient cooling package 52° C (126° F)
    • Starting kit, cold weather, less than –32° C (–26° F)
    • Water separator with water level indicator sensor
    • Radiator and oil cooler side by side with enough space for cleaning
    • Two speed travel
    • Electric (priming) pump
    • Power modes (Eco and High Power)
    • Variable fan with viscous clutch
    • New fuel filtration system (primary ×1, twin main ×2)
    • B20 biodiesel fuel capability
    • Air-to-air-aftercooler
  • HYDRAULIC SYSTEM
    • Automatic swing parking brake
    • High performance hydraulic return filters
    • Hydraulic main pump
    • Universal seal used in cylinders
    • Fine swing control
    • Cat bio-oil capability
    • Capability of installing additional valves, pumps, circuits
    • Auxiliary hydraulic valve*
    • Reverse swing damping valve*
    • Boom drift reducing valve*
    • Array
  • CAB
    • Pressurized cab
    • Mechanical or air suspension seat
    • Positive filtered ventilation
    • Adjustable armrest
    • Seat belt, retractable (51 mm [2 in] or 76 mm [3 in] width)
    • 70/30 split front windshield
    • Laminated upper front windshield and tempered other windows
    • Sliding upper door window
    • Openable front windshield with assist device
    • Openable roof hatch
    • Removable lower windshield, within cab storage bracket
    • Pillar mounted upper windshield wiper and washer
    • Bi-level air conditioner (automatic) with defroster (pressurized function)
    • Full color and full graphic LCD display with warning, filter/fluid change, and working hour information
    • Control lever joysticks, seat integrated
    • Neutral lever (lock out) for all controls
    • Travel control pedals with removable hand levers
    • Two stereo speakers
    • Radio mounting
    • Beverage holder
    • Coat hook
    • Interior lighting
    • Ashtray and lighter
    • Rear window, emergency exit
    • Capability to install two additional pedals
    • Bolt-on FOGS (Falling Objects Guarding System) capability
  • UNDERCARRIAGE
    • Idler and center section track guiding guards
    • Towing eyes on base frame
    • Grease lubricated track GLT2, resin
  • ELECTRICAL
    • Batteries (2 – 900 CCA)
    • Capability to connect a beacon
  • LIGHTS
    • Working light, storage box mounted
    • Interior lighting
  • SAFETY AND SECURITY
    • Cat one key security system
    • Door and compartment locks
    • Signaling/warning horn
    • Rearview mirrors
    • Rearview camera ready
    • Fire wall between engine and pump compartment
    • Emergency engine shutoff switch
    • Rear window, emergency exit
    • Battery disconnect switch
    • Cap locks on fuel and hydraulic tanks
    • Lockable tool box
  • COUNTERWEIGHT
    • 5860 kg (12,920 lb) counterweight
  • TECHNOLOGY
    • Product Link
  • HYDRAULIC SYSTEM
    • Tool control system
    • Hammer circuit, foot pedal operated
    • Two way combined circuit, foot pedal operated
    • Two way combined circuit, joystick modulation operated
    • Two way combined circuit with medium pressure, joystick modulation operated
    • Heavy lift mode
    • Boom lowering control device
  • CAB
    • 12V-10A power supply
    • Sun screen
    • Radio 12V and 24V
    • Travel alarm
    • Falling Objects Guarding System (FOGS)
    • Rearview camera and mirrors
    • Control pattern quick-changer
  • UNDERCARRIAGE AND GUARDS
    • Standard undercarriage and long undercarriage
    • 600 mm (24 in) double grouser shoes
    • 600 mm (24 in) triple grouser shoes
    • 800 mm (31 in) triple grouser shoes
    • Segmented track guiding guard (two pieces)
    • Full length track guiding guard
    • Swing frame with bumper capability: – (HD) bottom – (HD) travel motor – Swivel guard
  • LIGHTS
    • Cab mounted working lights
