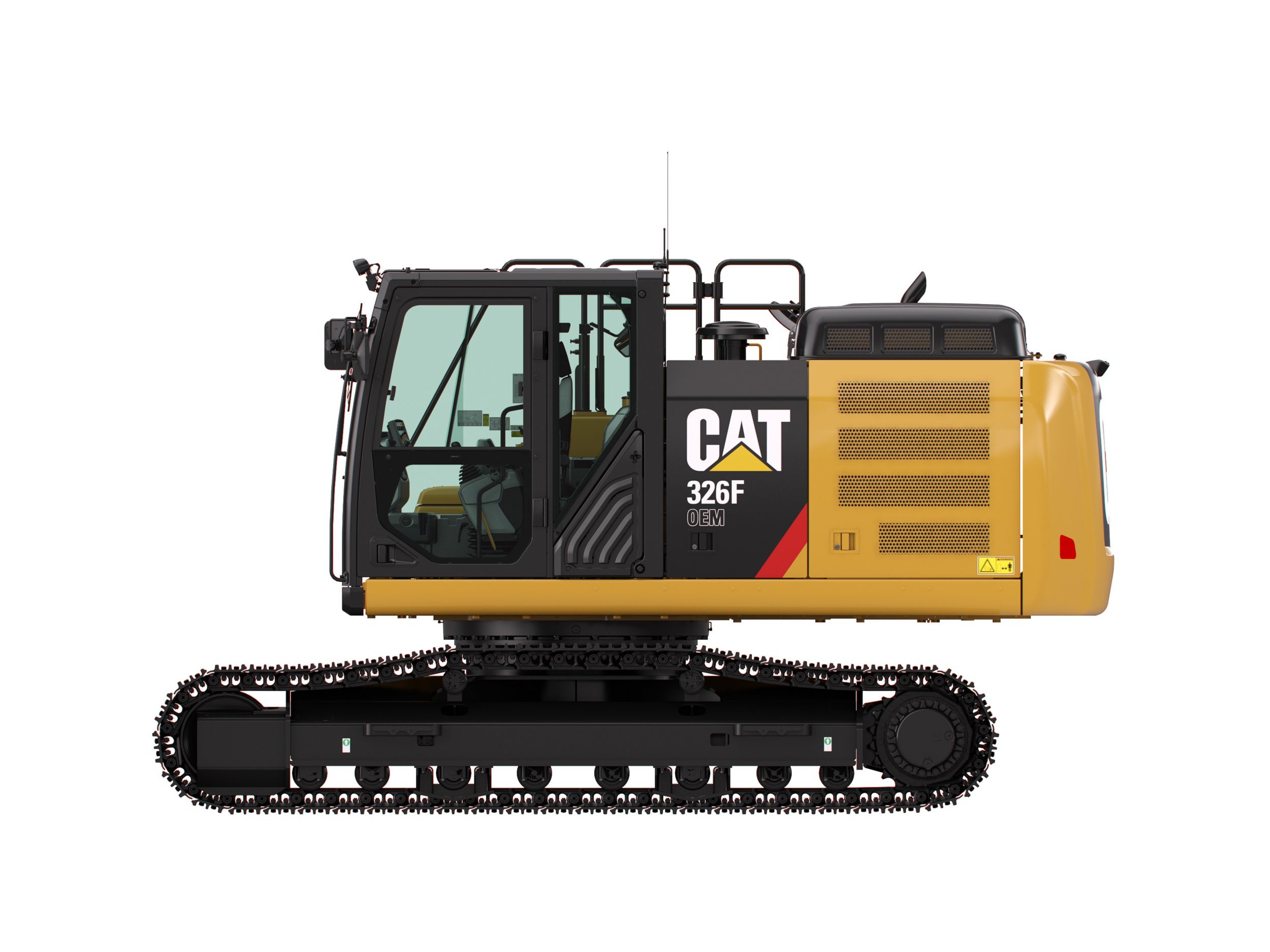

326F Frontless Excavator

Cat® Frontless Hydraulic Excavators are loaded with options–giving you the flexibility to match the machine front to your specific application. These purpose-built, excavator-based specialty machines can be sourced through Caterpillar OEM Solutions and our global network of auxiliary equipment manufacturers.

Engine

Engine Model: Cat® C7.1 ACERT™
Net Flywheel Power: 203.0 hp
Bore: 4.13 in
Stroke: 5.31 in
Displacement: 428.0 in3
Net Power – SAE J1349/ISO 9249: 203.0 hp
Gross Power – SAE J1995: 207.0 hp

Weights

Maximum Operating Weight: 64831.0 lb
Frontless Weight: 48502 lb

Swing Mechanism

Swing Speed: 9.0 rpm
Swing Torque: 54137.0 lbf-ft

Drive

Maximum Drawbar Pull: 50807.0 lbf
Maximum Travel Speed: 3.3 mph

Hydraulic System

Main System – Maximum Flow (Total): 134.0 gal/min
Maximum Pressure – Equipment Heavy Lift: 5511.0 psi
Maximum Pressure – Equipment Normal: 5076.0 psi
Maximum Pressure – Travel: 5366.0 psi
Maximum Pressure – Swing: 3973.0 psi
Pilot System – Maximum Flow: 5.4 gal/min
Pilot System – Maximum Pressure: 595.0 psi

FOR MORE INFORMATION ON 326F OEM FRONTLESS HYDRAULIC EXCAVATOR OPTIONS, PLEASE CONTACT CATERPILLAR OEM SOLUTIONS AT OEMSOLUTIONS@CAT.COM.
