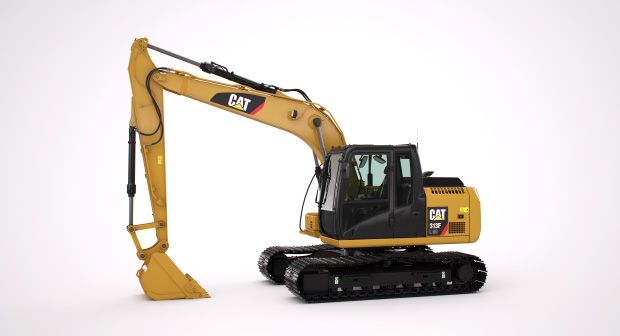

313F L GC Hydraulic Excavator
The Cat® 313F L GC is a perfect choice for customers who value versatility, reliability, durability, and maximum efficiency.
- Technical Specs
- Engine Model
- C3.4
- Flywheel Power
- 70 hp
- Bore
- 3.90 in
- Stroke
- 4.33 in
- Displacement
- 207 in3
- Gross Power – SAE J1995
- 74 hp
- Net Power – SAE J1349
- 70 hp
- Engine rpm – Operation
- 1700 rpm
- Engine rpm – Travel
- 1800 rpm
- Operating Weight
- 29300 lb
- Operating Weight
- 29300 lb
- Note
- Long undercarriage, reach boom, R3.0 (9'10") stick, GD 0.53 m3 (0.69 yd3) bucket, and 500 mm (20") shoes.
- Swing Torque
- 22791 lbf-ft
- Swing Speed
- 11.7 rpm
- Maximum Drawbar Pull
- 24728 lbf
- Maximum Travel Speed
- 3.3 mph
- Maximum Pressure – Travel
- 4424 psi
- Maximum Pressure – Swing
- 3336 psi
- Pilot System – Maximum Pressure
- 598 psi
- Main System – Maximum Flow (total)
- 63.4 gal/min
- Maximum Pressure – Equipment
- 4424 psi
- Cooling System
- 4.7 gal
- Engine Oil
- 2.1 gal
- Hydraulic System (including tank)
- 43.3 gal
- Hydraulic Tank
- 23.9 gal
- Final Drive
- 0.6 gal
- Fuel Tank Capacity
- 66.0 gal
- Swing Drive
- 0.8 gal
- Shipping Height
- 9.08 ft
- Shipping Length
- 25.25 ft
- Shipping Length with Blade
- 26.08 ft
- Tail Swing Radius
- 7.00 ft
- Length to Center of Rollers
- 10.00 ft
- Track Length
- 12.25 ft
- Ground Clearance
- 1.42 ft
- Track Gauge (shipping)*
- 6.50 ft
- Transport Width – 700 mm (28 in) Shoes
- 8.83 ft
- Cab Height
- 9.08 ft
- Cab Height with Top Guard
- 9.50 ft
- Counterweight Clearance
- 2.92 ft
- Note
- *With GD 0.53 m3 (0.69 yd3) bucket
- Maximum Digging Depth
- 19.75 ft
- Maximum Reach at Ground Line
- 28.25 ft
- Maximum Cutting Height
- 28.50 ft
- Maximum Loading Height
- 20.83 ft
- Minimum Loading Height
- 5.00 ft
- Maximum Depth Cut for 2240 mm (8 ft) Level Bottom
- 19.17 ft
- Maximum Vertical Wall Digging Depth
- 17.67 ft
