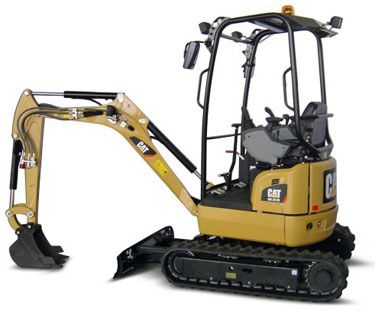

301.7D CR Mini Hydraulic Excavator

Engine

Engine Model

Yanmar 3TNV76

Net Power

17.7 hp

Displacement

40.0 in3

Gross Power (ISO 14396)

24.3 hp

Rated Net Power @ 2,200 rpm (ISO 9249)

17.7 hp

Weights

Operating Weight

3726.0 lb

Operating Weight with Canopy

3726.0 lb

Transport Weight with Canopy

3550.0 lb

Travel System

Gradeability

30°/58%

Travel Speed

2.8 km/h-5.6 km/h (1.74 mph-3.48 mph)

Hydraulic System

Operating Pressure - Equipment

3481.0 psi

Operating Pressure - Travel

3481.0 psi

Operating Pressure - Swing

2610.0 psi

Auxiliary Circuits: Primary and Secondary Auxiliary Circuits - Maximum Flow

9.0 gal/min

Auxiliary Circuits: Primary and Secondary Auxiliary Circuits - Maximum Pressure

3335.0 psi

Maximum Bucket Force

3190.0 lb

Maximum Stick Force - Long Stick

1640 lb

Maximum Stick Force - Standard Stick

1890.0 lb

Pump Flow @ 2,200 rpm

10.5 gal/min

Blade

Height

9.0 in

Dig Depth

15.0 in

Lift Height

11.0 in

Width

990 mm/1300 mm (3 ft 3 in/4 ft 3 in)

Service Refill Capacities

Fuel Tank Capacity

5.0 gal

Hydraulic Tank Capacity

5.3 gal

Dimensions (Approximate) – Standard Stick

Width

990 mm-1300 mm (3'3"-4'3")

Dimensions (Approximate) – Long Stick

Width

990 mm-1300 mm (3'3"-4'3")

Dimensions (Approximate) - Standard Stick

Boom Swing Angle (LH)

65°

Boom Swing Angle (RH)

57°

Height

7.75 ft

Length of Undercarriage (Extending)

5.27 ft

Maximum Boom Offset (LH)

1.37 ft

Maximum Boom Offset (RH)

1.75 ft

Maximum Dig Height

11.27 ft

Maximum Digging Depth

7.61 ft

Maximum Dozer Dig Depth

1.28 ft

Maximum Dozer Lift Height

11.0 in

Maximum Dump Height

8.0 ft

Maximum Reach at Ground Level

12.6 ft

Maximum Vertical Dig Depth

5.18 ft

Tail Swing Radius

660 mm/722 mm (2'1"/2'4")

Transport Length (Arm Lowered)

11.76 ft

Undercarriage Width (Extended)

4.27 ft

Undercarriage Width (Retracted)

3.25 ft

Width

2.4 ft

Dimensions (Approximate) - Long Stick

Boom Swing Angle (LH)

65°

Boom Swing Angle (RH)

57°

Height

7.75 ft

Length of Undercarriage (Extending)

5.27 ft

Maximum Boom Offset (LH)

1.37 ft

Maximum Boom Offset (RH)

1.75 ft

Maximum Dig Height

11.64 ft

Maximum Digging Depth

8.14 ft

Maximum Dozer Dig Depth

1.28 ft

Maximum Dozer Lift Height

11.0 in

Maximum Dump Height

8.38 ft

Maximum Reach at Ground Level

13.11 ft

Maximum Vertical Dig Depth

5.64 ft

Tail Swing Radius

660 mm/722 mm (2'1"/2'4")

Transport Length (Arm Lowered)

11.76 ft

Undercarriage Width (Extended)

4.27 ft

Undercarriage Width (Retracted)

3.25 ft

Width

2.4 ft

Operating Specifications

Counterweight

110.0 lb

Stick Length - Long

43.2 in

Stick Length - Standard

37.1 in
