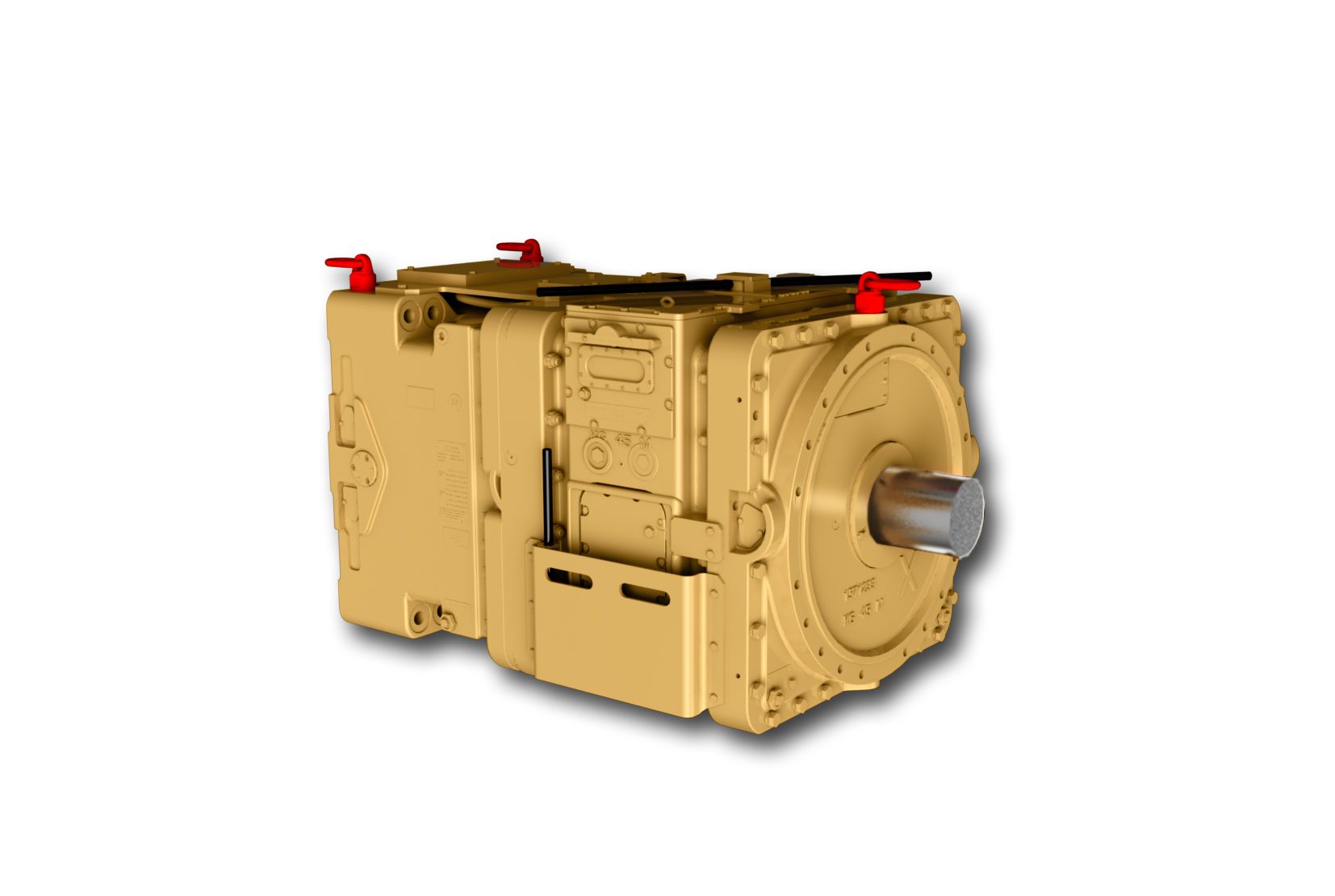

CST45 M Gearbox

CST45 M Gearbox

Download the Product Brochure
Continue Browsing

Specifications

Maximum Input Speed (motor speed)
1,782 rpm
Weight (without oil) - In-line Drive System
15873.0 lb
Maximum Output Torque for a Short Duration (3 sec.)
331858.0 ft-lb

Typical Application

Description
Chain Type Longwall Machinery like Armored Face Conveyors (AFC) and Plow Systems

Maximum Output Torque (for 3 sec) Tmax [N·m]

P-45 M CST
331858.0 lb ft
Rated Power P @ 50 Hz (n = 1,485 rpm) - Ratio i [-]: 16
800 kW
Rated Power P @ 50 Hz (n = 1,485 rpm) - Ratio i [-]: 21
800 kW
Rated Power P @ 50 Hz (n = 1,485 rpm) - Ratio i [-]: 28
800 kW
Rated Power P @ 50 Hz (n = 1,485 rpm) - Ratio i [-]: 33
800 kW
Rated Power P @ 50 Hz (n = 1,485 rpm) - Ratio i [-]: 39
700 kW
Rated Power P @ 50 Hz (n = 1,485 rpm) - Ratio i [-]: 45
540 kW
Rated Power P @ 50 Hz (n = 1,485 rpm) - Ratio i [-]: 50
500 kW
Rated Power P @ 60 Hz (n = 1,782 rpm) - Ratio i [-]: 16
1,305 hp
Rated Power P @ 60 Hz (n = 1,782 rpm) - Ratio i [-]: 21
1,305 hp
Rated Power P @ 60 Hz (n = 1,782 rpm) - Ratio i [-]: 28
1,305 hp
Rated Power P @ 60 Hz (n = 1,782 rpm) - Ratio i [-]: 33
1,305 hp
Rated Power P @ 60 Hz (n = 1,782 rpm) - Ratio i [-]: 39
1,142 hp
Rated Power P @ 60 Hz (n = 1,782 rpm) - Ratio i [-]: 45
881 hp
Rated Power P @ 60 Hz (n = 1,782 rpm) - Ratio i [-]: 50
816 hp

Dimensions

Height
41.7 in
Length
66.8 in
Width
44.1 in

Requirements of Cooling Water

Maximum Water Inlet Temperature
25° C/298.15 K (77° F/298.15 K)
Required Cooling Water Quantity
7.9 gal/min

Capacity

Gearbox Weight (without oil)
15873.0 lb
Oil Quantity
85.0 gal

Shaft Design

Input Shaft (cylindrical)
DIN 5480-W 120×4
Output Shaft with Internal Toothing
DIN 5480-N 260×10×30×24
