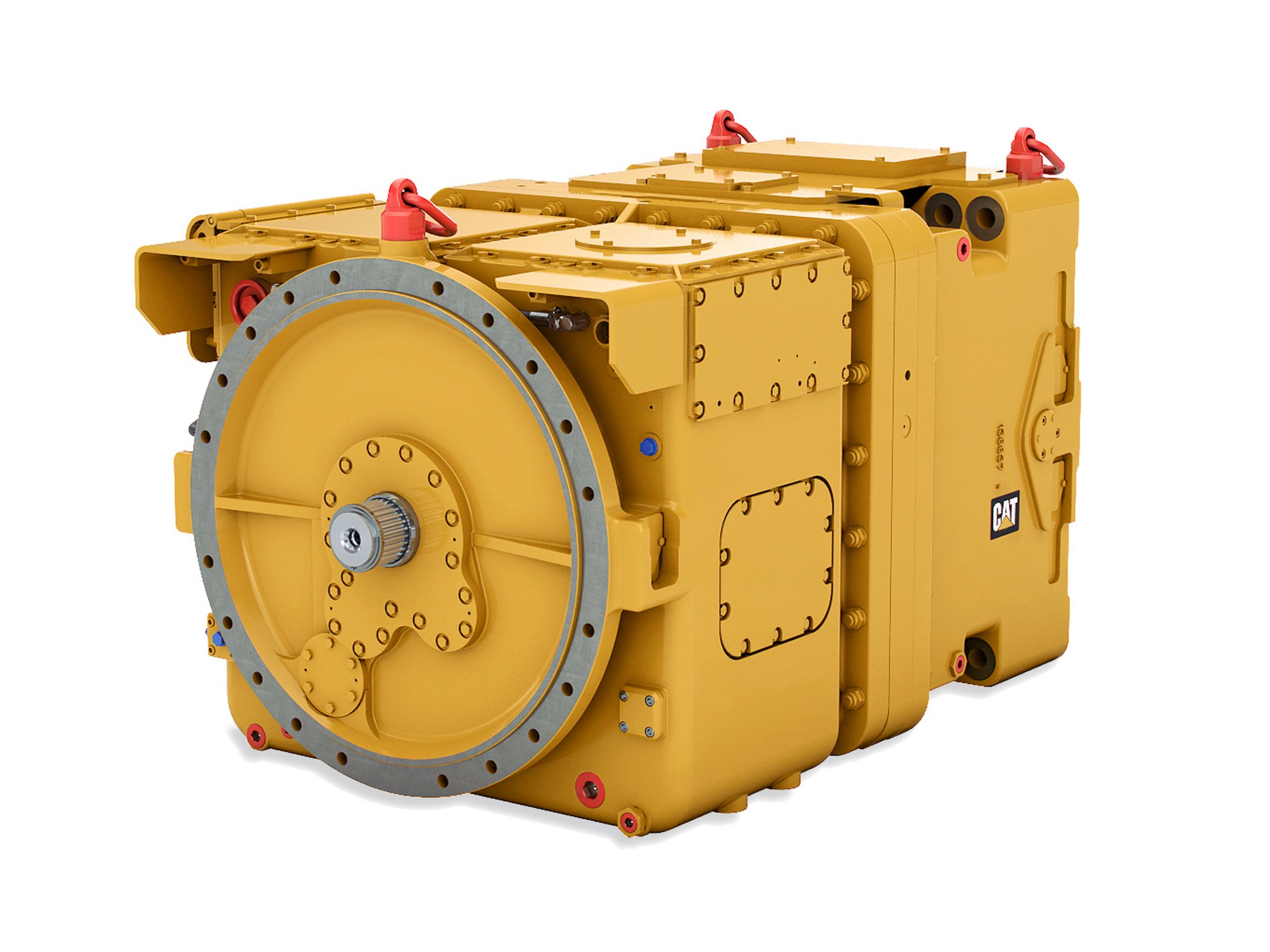

CST45 Gearbox

CST45 Gearbox

Download the Product Brochure
Continue Browsing

Cat® Controlled Start Transmission (CST) drive systems optimize the use of power for maximum production capacities. Ever more powerful systems require ever more horsepower, heavier chains and faster conveyor speed with maximum availability. What was needed was a truly intelligent drive system for face conveyors, which led our engineers to develop the Controlled Start Transmission (CST) drive system meeting the following requirements: • Currently available power up to 1200 kW (1,950 hp) per transmission unit • Safe startup of the face conveyor • Full utilization of the installed power • Highly durable components • Compact dimensions • High level of efficiency

Specifications

Maximum Input Speed (motor speed)
1,782 rpm
Weight (without oil) - In-line Drive System
13007.0 lb
Maximum Output Torque for a Short Duration (3 sec.)
331858.0 ft-lb
Application
Chain type longwall machinery like face conveyors
Dimensions In-line gearbox (P version) - Height
41.7 in
Dimensions In-line gearbox (P version) - Length (without drive connection)
66.8 in
Dimensions In-line gearbox (P version) - Width
44.1 in
Dimensions Right-/Left-angle Gearbox (KP version) - Height
41.7 in
Dimensions Right-/Left-angle Gearbox (KP version) - Length (without drive connection)
109.1 in
Dimensions Right-/Left-angle Gearbox (KP version) - Width
50.6 in
Maximum Installed Power - kW 1,500 rpm @ 50 Hz (hp 1,800 rpm @ 60 Hz) at: i = 33:1 - 16:1
1300.0 hp
Maximum Installed Power - kW 1,500 rpm @ 50 Hz (hp 1,800 rpm @ 60 Hz) at: i = 39:1
1100.0 hp
Maximum Installed Power - kW 1,500 rpm @ 50 Hz (hp 1,800 rpm @ 60 Hz) at: i = 50:1
800.0 hp
Oil Filling Quantities - In-line Drive System
114.0 gal
Oil Filling Quantities - Right-/Left-angle Drive System
193.0 gal
Weight (without oil) - Right-/Left-angle Drive System
21500.0 lb

Typical Application

Description
Chain Type Longwall Machinery like Armored Face Conveyors (AFC)

Maximum Output Torque (for 3 sec) Tmax [N·m]

KP-45/P-45 CST
331858.0 lb ft
Rated Power P @ 50 Hz (n = 1,485 rpm) - Ratio i [-]: 24.5
800 kW
Rated Power P @ 50 Hz (n = 1,485 rpm) - Ratio i [-]: 28
800 kW
Rated Power P @ 50 Hz (n = 1,485 rpm) - Ratio i [-]: 33
800 kW
Rated Power P @ 50 Hz (n = 1,485 rpm) - Ratio i [-]: 39
700 kW
Rated Power P @ 50 Hz (n = 1,485 rpm) - Ratio i [-]: 45
540 kW
Rated Power P @ 50 Hz (n = 1,485 rpm) - Ratio i [-]: 50
500 kW
Rated Power P @ 60 Hz (n = 1,782 rpm) - Ratio i [-]: 24.5
1,305 hp
Rated Power P @ 60 Hz (n = 1,782 rpm) - Ratio i [-]: 28
1,305 hp
Rated Power P @ 60 Hz (n = 1,782 rpm) - Ratio i [-]: 33
1,305 hp
Rated Power P @ 60 Hz (n = 1,782 rpm) - Ratio i [-]: 39
1,142 hp
Rated Power P @ 60 Hz (n = 1,782 rpm) - Ratio i [-]: 45
881 hp
Rated Power P @ 60 Hz (n = 1,782 rpm) - Ratio i [-]: 50
816 hp

Dimensions

KP-45 CST - Height
41.7 in
KP-45 CST - Length
113.2 in
KP-45 CST - Width
55.2 in
P-45 CST - Height
41.7 in
P-45 CST - Length
66.8 in
P-45 CST - Width
44.1 in

Requirements of Cooling Water

Maximum Water Inlet Temperature
25° C/298.15 K (77° F/298.15 K)
Required Cooling Water
6.6 gal/min

Capacity

KP-45 CST - Gearbox Weight (without oil)
21385.0 lb
KP-45 CST - Oil Quantity
193.0 gal
P-45 CST - Gearbox Weight (without oil)
13007.0 lb
P-45 CST - Oil Quantity
114.0 gal

Shaft Design

Input Shaft (cylindrical)
DIN 5480-W 120×4
Output Shaft with Internal Toothing
DIN 5480-N 260×10×30×24
