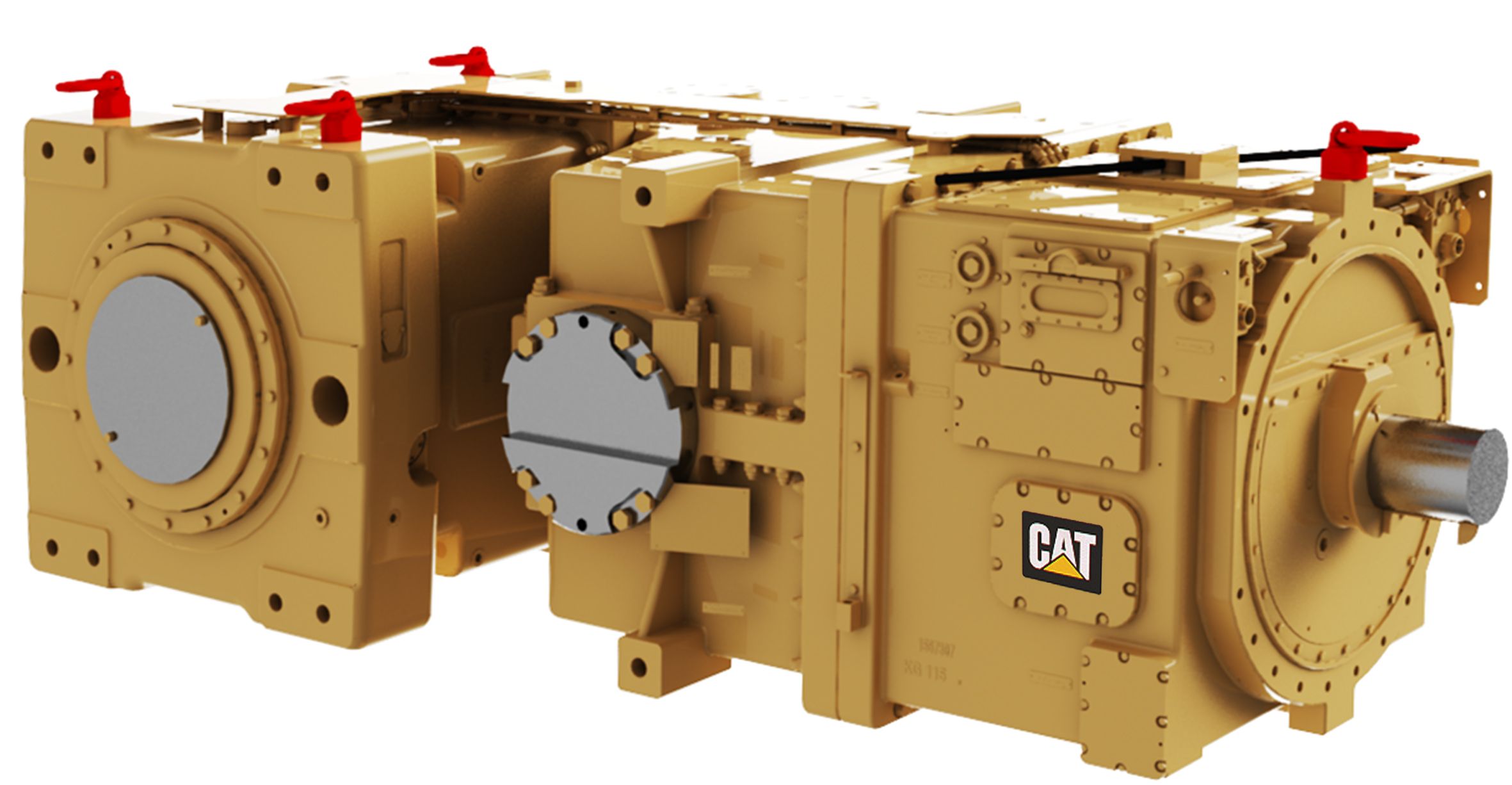

CST115 Gearbox

CST115 Gearbox

Download the Product Brochure
Continue Browsing

Specifications

Maximum Output Torque for a Short Duration (3 sec.)
848196.0 ft-lb
Maximum Input Speed (motor speed)
1,782 rpm
Weight (without oil) - In-line Drive System
36165.0 lb

Typical Application

Description
Chain Type Longwall Machinery like Armored Face Conveyors (AFC)

Maximum Output Torque (for 3 sec) Tmax [N·m]

KP-115 CST/P-115 CST
848196.0 lb ft
Rated Power P @ 50 Hz (n = 1,485 rpm) - Ratio i [-]: 39
1800 kW
Rated Power P @ 50 Hz (n = 1,485 rpm) - Ratio i [-]: 46
1800 kW
Rated Power P @ 60 Hz (n = 1,782 rpm) - Ratio i [-]: 39
2,937 hp
Rated Power P @ 60 Hz (n = 1,782 rpm) - Ratio i [-]: 46
2,480 hp

Dimensions

KP-115 CST - Height
51.1 in
KP-115 CST - Length
141.6 in
KP-115 CST - Width
79.8 in
P-115 CST - Height
51.1 in
P-115 CST - Length
110.6 in
P-115 CST - Width
55.1 in

Requirements of Cooling Water

Maximum Water Inlet Temperature
25° C/298.15 K (77° F/298.15 K)
Required Cooling Water Quantity
23.8 gal/min

Capacity

KP-115 CST - Gearbox Weight (without oil)
52851.0 lb
KP-115 CST - Oil Quantity
212.0 gal
P-115 CST - Gearbox Weight (without oil)
36145.0 lb
P-115 CST - Oil Quantity
132.0 gal

Shaft Design

Input Shaft (cylindrical)
DIN 5480-W 140×4
Output Shaft with Internal Toothing
DIN 5480-N 360×10
