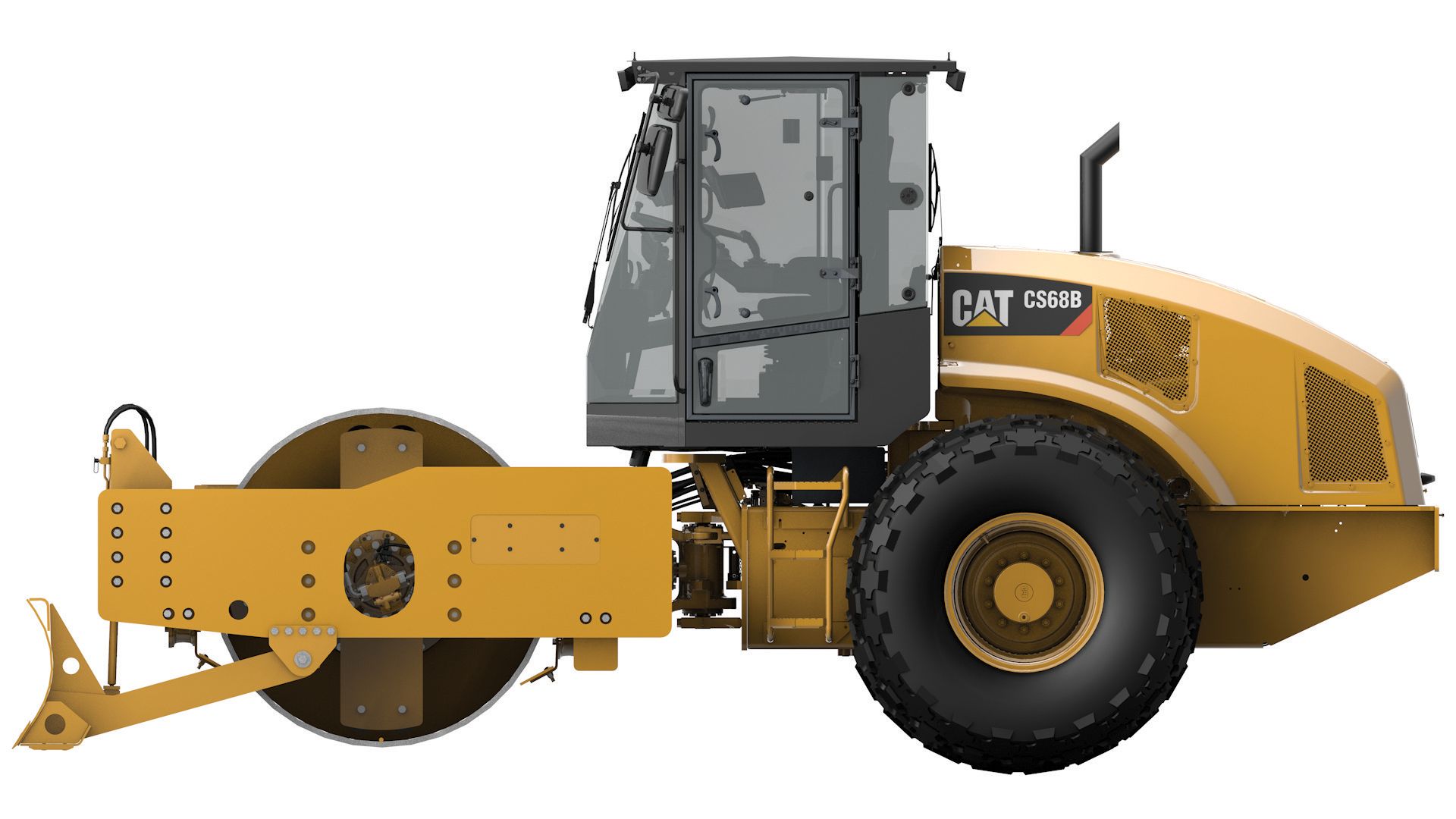

CS68B Vibratory Soil Compactor
The CS68B Vibratory Soil Compactor combines world-class productivity with outstanding operator comfort while continuing the legacy of durability, reliability and ease-of-service that contractors worldwide have come to expect from Cat® machines.
- Technical Specs
- Optional Equipment
- Operating Weight with Cab
- 31572.0 lb
- Weight at Drum with Cab
- 20164.0 lb
- Compaction Width
- 84.0 in
- Ground Clearance
- 17.2 in
- Static Linear Load, with Cab
- 240.1 lb/in
- Travel Speed - Maximum
- 7.0 mph
- Turning Radius Inside Drum Edge
- 12.08 ft
- Gross Power
- 157.0 hp
- Engine Model
- Cat C4.4 with ACERT
- Drum Diameter
- 60.4 in
- Drum Width
- 84.0 in
- Height with ROPS/FOPS or Cab
- 10.25 ft
- Optional Blade Height
- 27.1 in
- Overall Length
- 19.83 ft
- Overall Length with Blade Option
- 21.5 ft
- Overall Width
- 7.67 ft
- Overall Width with Blade Option
- 8.25 ft
- Wheelbase
- 9.58 ft
- Centrifugal Force - Maximum
- 67600.0 lb
- Centrifugal Force - Minimum
- 31670.0 lb
- Nominal Amplitude - High
- 0.083 in
- Nominal Amplitude - Low
- 0.039 in
- Variable Frequency Option Range
- 23.3 - 30.5 Hz (1400-1830 vpm)
- Vibratory Frequency - Standard
- 30.5 Hz (1830 vpm)
- Tires
- 23.1 x 26
- Fuel Tank Capacity
- 64.0 gal
- Padfoot Shell Kit
- Leveling Blade
- Cat Compaction Control, Compaction Meter Value (CMV)
- Cat Compaction Control, Machine Drive Power (MDP)
- Cat Compaction Control, both CMV and MDP technology
- GNSS Mapping for Cat Compaction Control, SBAS or RTK
- Deluxe Operator's Seat for Cab
- Product Link
- Upgraded Halogen Light Package
- Transmission Guard
- Rear-side Steel Scraper
- Front and Rear Polyurethane Scrapers
- Rotating Beacon
- Bio-oil Factory Fill
- Additional Rear View Mirrors
- Italian Road Homologation (IRH)
