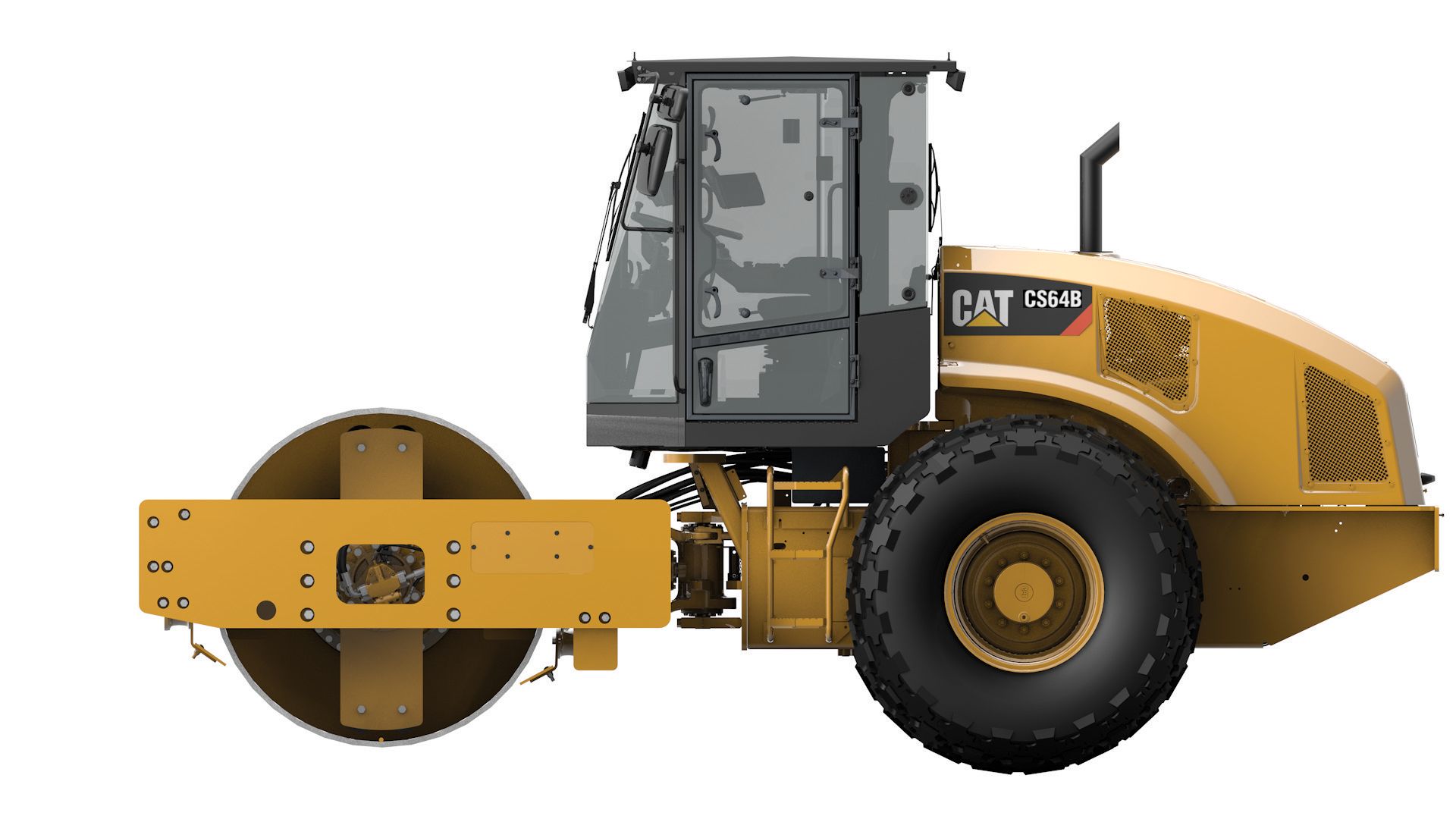

CS64B Vibratory Soil Compactor

CS64B Vibratory Soil Compactor

Download the Product Brochure
Continue Browsing

The CS64B Vibratory Soil Compactor combines world-class productivity with outstanding operator comfort while continuing the legacy of durability, reliability and ease-of-service that contractors worldwide have come to expect from Cat® machines.


Operating Weight with Cab
26569.0 lb
Weight at Drum with Cab
15690.0 lb

Operating Specifications

Compaction Width
84.0 in
Ground Clearance
17.4 in
Static Linear Load, with Cab
186.8 lb/in
Travel Speed - Maximum
6.8 mph
Turning Radius Inside Drum Edge
12.08 ft


Gross Power
131.0 hp
Engine Model
Cat C4.4 with ACERT


Drum Diameter
60.4 in
Drum Width
84.0 in
Height with ROPS/FOPS or Cab
10.25 ft
Overall Length
19.17 ft
Overall Width
7.58 ft
9.58 ft

Vibratory System

Centrifugal Force - Maximum
52600.0 lb
Centrifugal Force - Minimum
29900.0 lb
Nominal Amplitude - High
0.075 in
Nominal Amplitude - Low
0.037 in
Variable Frequency Option Range
23.3 - 30.5 Hz (1400-1830 vpm)
Vibratory Frequency - Standard
30.5 Hz (1830 vpm)


23.1 x 26

Service Refill Capacities

Fuel Tank Capacity
64.0 gal
  • Padfoot Shell Kit
  • Cat Compaction Control, Compaction Meter Value (CMV)
  • Cat Compaction Control, Machine Drive Power (MDP)
  • Cat Compaction Control, with CMV and MDP technology
  • GNSS Mapping for Cat Compaction Control, SBAS or RTK
  • Deluxe Operator's Seat for Cab
  • Product Link
  • Upgraded Halogen Light Package
  • Transmission Guard
  • Rear-side Steel Scraper
  • Front and Rear Polyurethane Scrapers
  • Rotating Beacon
  • Bio-oil Factory Fill
  • Additional Rear View Mirrors
  • Italian Road Homologation (IRH)
