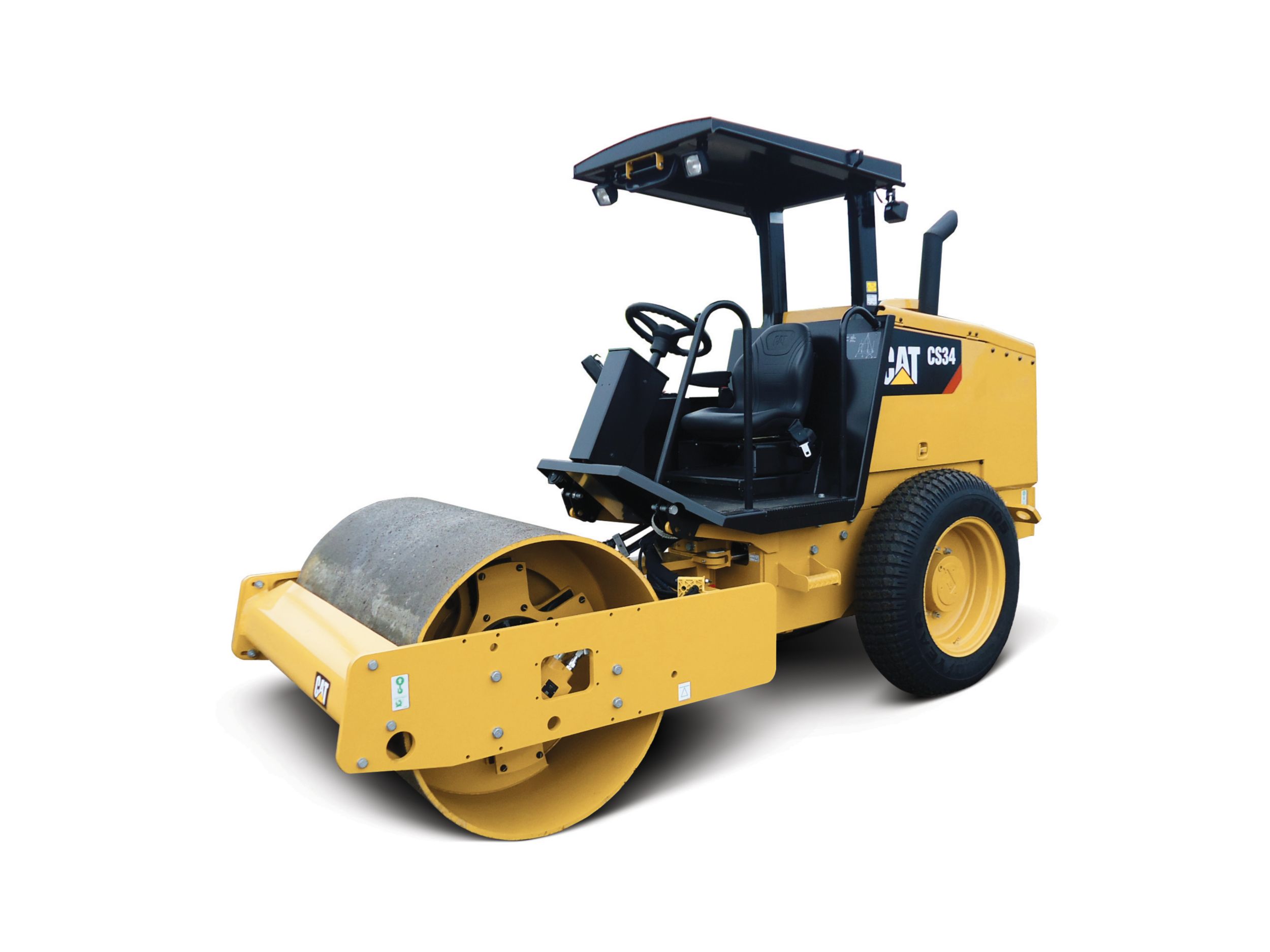

CS34 Vibratory Soil Compactor
The CS34 has a durable Cat power train, field-proven hydraulic and vibratory system, production enhancing options, and the world’s largest and most dedicated dealer support system to ensure maximum compaction performance and value.
- Technical Specs
- Gross Power
- 74 hp
- Engine Model
- Cat® C3.4B
- Bore
- 3.89 in
- Stroke
- 4.33 in
- Operating Weight w/ROPS/FOPS
- 9799 lb
- Weight at Drum w/ROPS/FOPS
- 4500.0 lb
- Drum Width
- 50.0 in
- Travel Speed (Maximum)
- 5.5 mph
- Turning Radius Inside Drum Edge
- 103 in
- Turning Radius Outside Drum Edge
- 153.0 in
- Ground Clearance
- 13.6 in
- Curb Clearance
- 13.2 in
- Drum Diameter - Over Drum
- 40.0 in
- Overall Length
- 164.5 in
- Overall Width
- 54.5 in
- Height w/ROPS/FOPS
- 98.0 in.
- Wheelbase
- 88.0 in
- Tires
- 6-ply Floatation
- Fuel Tank Capacity
- 30 gal
- Vibratory Frequency
- 2100.0 vpm
- Nominal Amplitude - High
- 0.05 in
- Centrifugal Force Maximum
- 15000.0 lb
