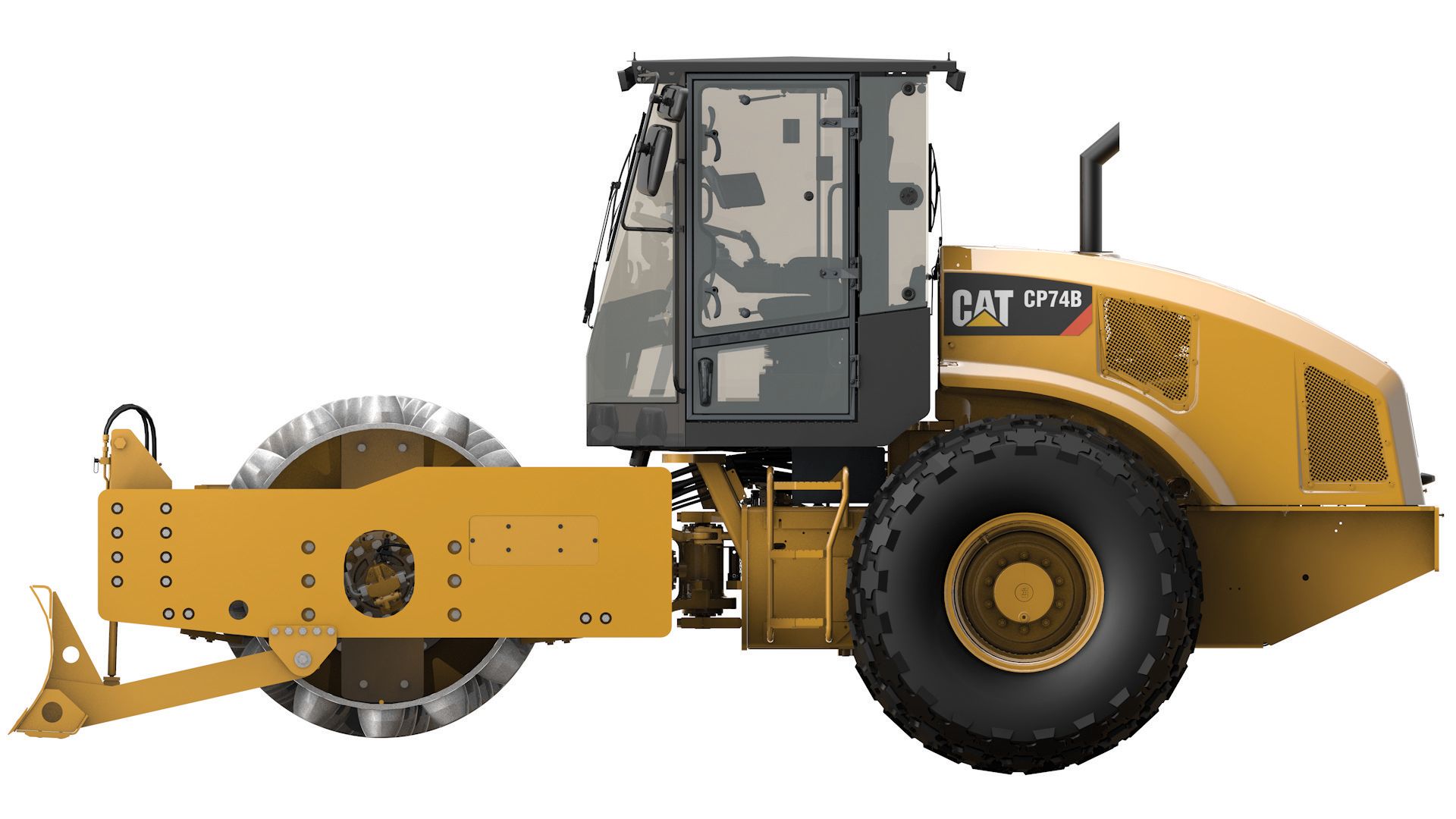

CP74B Vibratory Soil Compactor

CP74B Vibratory Soil Compactor

Download the Product Brochure
Continue Browsing

The CP74B Vibratory Soil Compactor combines world-class productivity with outstanding operator comfort while continuing the legacy of durability, reliability and ease-of-service that contractors worldwide have come to expect from Cat® machines.

Weights

Operating Weight with Cab
36048.0 lb
Weight at Drum with Cab
23633.0 lb

Operating Specifications

Compaction Width
84.0 in
Ground Clearance
17.5 in
Travel Speed - Maximum
7.0 mph
Turning Radius Inside Drum Edge
12.08 ft

Engine

Gross Power
173.7 hp
Engine Model
Cat C4.4 with ACERT

Dimensions

Drum Diameter
51.0 in
Drum Diameter - Over Pads
61.0 in
Drum Width
84.0 in
Height with ROPS/FOPS or Cab
10.25 ft
Optional Blade Height
27.1 in
Overall Length
19.83 ft
Overall Length with Blade Option
21.5 ft
Overall Width
7.67 ft
Overall Width with Blade Option
8.25 ft
Wheelbase
9.58 ft

Vibratory System

Centrifugal Force - Maximum
74600.0 lb
Centrifugal Force - Minimum
37300.0 lb
Nominal Amplitude - High
0.083 in
Nominal Amplitude - Low
0.039 in
Variable Frequency Option Range
23.3 - 28 Hz (1400-1680 vpm)
Vibratory Frequency - Standard
28 Hz (1680 vpm)

Tires

Tires
23.1 x 26

Service Refill Capacities

Fuel Tank Capacity
88.0 gal
  • Leveling Blade
  • Cat Compaction Control, Machine Drive Power (MDP)
  • GNSS Mapping for Cat Compaction Control, SBAS or RTK
  • Deluxe Operator's Seat for Cab
  • Product Link
  • Upgraded Halogen Light Package
  • Transmission Guard
  • Rotating Beacon
  • Bio-oil Factory Fill
  • Additional Rear View Mirrors
  • Italian Road Homologation (IRH)
