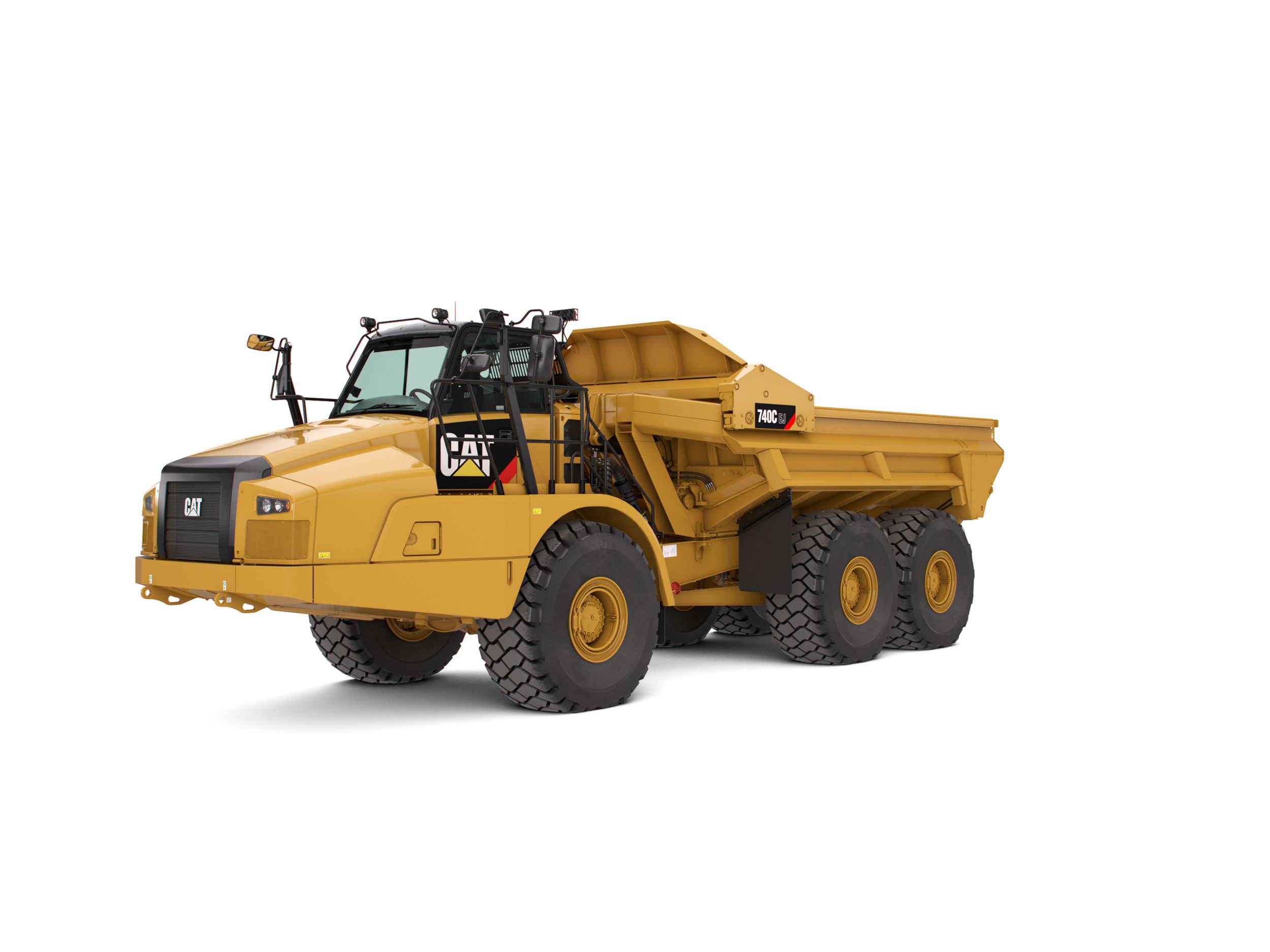

740C EJ Articulated Truck
The Cat 740C EJ with a 23 m3 (30.1 yd3) 38 tonnes (42 ton) capacity offers proven reliability, durability, high productivity, superior operator comfort and lower operating costs. With a focus on unique, adaptable productivity, the 740C EJ has many updated and improved features, an all new power train and new ease of operation features including Automatic Retarder Control.
- Technical Specs
- Standard Equipment
- Optional Equipment
- Engine Model
- Cat C18 ACERT
- Bore
- 5.7 in
- Stroke
- 7.2 in
- Displacement
- 1106 in3
- Gross Power – SAE J1995
- 511 hp
- Net Power – SAE J1349
- 496 hp
- Engine Model – U.S. EPA Tier 4 Final/EU Stage IV/Japan 2014 (Tier 4 Final)/Korea Tier 4 Final
- Cat® C18 ACERT™
- Net Power – ISO 14396
- 504 hp
- No Engine De-rating Required Below
- 10000 ft
- Peak Engine Torque Gross (SAE J1995)
- 1931 lbf-ft
- Peak Engine Torque Net (SAE J1349)
- 1887 lbf-ft
- Peak Engine Torque Speed
- 1200 rpm
- Rated Payload
- 42 tons
- Heaped SAE 2:1
- 30.1 yd3
- Struck
- 23.5 yd3
- Forward 1
- 3.8 mph
- Forward 2
- 5 mph
- Forward 3
- 7 mph
- Forward 4
- 8.8 mph
- Forward 5
- 11.6 mph
- Forward 6
- 14.2 mph
- Forward 7
- 19.6 mph
- Reverse 1
- 4 mph
- Reverse 2
- 9.1 mph
- Forward 8
- 23.5 mph
- Forward 9
- 34 mph
- Interior Cab
- 79 dB(A)
- Front Axle – Empty
- 45239 lb
- Center Axle – Empty
- 17416 lb
- Rear Axle – Empty
- 16865 lb
- Total – Empty
- 79521 lb
- Front Axle – Rated Load
- 3527 lb
- Center Axle – Rated Load
- 40124 lb
- Rear Axle – Rated Load
- 40124 lb
- Total – Rated Load
- 83776 lb
- Front Axle – Loaded
- 48766 lb
- Center Axle – Loaded
- 57541 lb
- Rear Axle – Loaded
- 56989 lb
- Total – Loaded
- 163296 lb
- Type
- High strength Brinell HB450 wear resistant steel
- Fuel Tank
- 145.3 gal
- Cooling System
- 23.7 gal
- Engine Crankcase
- 13.7 gal
- DEF Tank
- 6.6 gal
- Transmission/OTG
- 19.8 gal
- Final Drives (each)
- 1.3 gal
- Axles (each)
- 15.8 gal
- Steering/Hoist Hydraulic System
- 36.9 gal
- Brake Cooling Tank
- 17.69 gal
- Eject Time
- 17 Seconds
- Retract Time
- 20 Seconds
- Lock to Lock
- 4.6 seconds @ 60 rpm
- Brakes
- ISO 3450-2011
- Cab/FOPS
- ISO 3449 Level II-2005
- Cab/ROPS
- ISO 3471-2008
- Steering
- ISO 5010-2007
- Note
- Dimensions are for machines equipped with 29.5R25 tires.
- Turning Dimensions: Steer Angle – Left/Right
- 45°
- Turning Dimensions: SAE Turning Radius
- 340 in
- Turning Dimensions: Clearance Radius
- 358 in
- Turning Dimensions: Inside Radius
- 174 in
- Turning Dimensions: Aisle Width
- 235 in
- Air conditioning with R134A refrigerant
- Adjustable air vents
- Auto shift nine-speed forward and two reverse transmission
- Reverse alarm
- Cat C18 ACERT engine
- Cat rearview camera
- Cat Clean Emission Module (CEM) and exhaust aftertreatment package
- Color Multi-Purpose Display (CMPD) incorporating the rearview camera feed
- Differentials: standard with automatic clutched inter and cross-axle differential locks
- Dual circuit oil immersed, enclosed brakes – all wheels
- Electrical system: 24 volt, 5A 24- to 12-volt converter
- Electro hydraulic hoist control
- Glass windows: laminated and tinted-front toughened and tinted-sides and rear
- Guards: rear window, radiator, crankcase and axle
- Heater and defroster with four-speed fan
- Horn: electric
- Lights: cab interior, front, width marker, side, rear, two reversing/work light, two stop/tail lights, front and rear direction indicators
- Mirrors: extensive arrangement for improved visibility
- Mud flaps: wheel arch and body mounted with transportation tiebacks
- Product Link: PL321 or PL522 dependent on location and licensing agreement
- Retarder: engine compression brake
-
ROPS/FOPS cab, Machine Operation Monitoring System includes:
- Action lamp, engine oil pressure, primary steering system, left turn signal, high beam, coolant temperature, tachometer, parking brake, fuel level, right turn signal, transmission oil temperature, brake system, transmission hold, eject control, hydraulic system, charging system, retarder, transmission fault, traction control system, check engine lamp
- Diesel Exhaust Fluid (DEF) level, emission malfunction lamp, regeneration active, Diesel Particulate Filter (DPF), regeneration disabled
-
Liquid Crystal Display (LCD):
- Alert indicator, selected gear and direction, speed or auto shift, review Operation and Maintenance Manual (OMM), primary steering failure, seat belt warning, secondary steering failure, DPF regeneration filter, Machine Security System (MSS), secondary steering energy source engaged, hour meter and retarder active
- Seat, fully adjustable, air suspension
- Seat, padded companion/trainer
- Secondary steering – electro hydraulic
- S·O·S sampling valves
- Spill guard, front, integral part of fabricated body
- Starting receptacle, electric, remote
- Storage: cup holder, flask receptacle, under seat storage, door pocket, behind seat storage, coat hook
- Sun visor
- Hydraulic tailgate
- Three axle, six-wheel drive
- Tilt and telescopic steering wheel
- Tires, six 29.5R25, radial
- Two seat belts, operator’s retractable
- Vandalism protection: lockable caps for fuel tank and hydraulic oil tank
- Windows opening side, tinted
- Windshield wiper and washer, two speed, intermittent (front)
- Windshield wiper and washer, two speed (rear)
- Auto lube installation for automatic greasing of bearings
- Body liners
- Bluetooth radio stereo system
- Cold weather coolant –51° C (–60° F)
- Cold weather start attachment
- Engine block heater
- Ether start
- Exhaust heated body
- Fast fuel fill
- Flashing LED beacon
- Fuel additive-anti-waxing
- Heated seat
- Heated rearview motorized mirrors
- Machine Security System (MSS)
- Product Link: PL321, PL522, VIMS™ Cellular, VIMS Satellite (where available)
- Roof mounted High Intensity Discharge (HID) work lights
- 875/65 R29 wide tires
- Cat production measurement payload monitoring system
