Face Conveyor – PF6

Face Conveyor – PF6

Download the Product Brochure
Continue Browsing

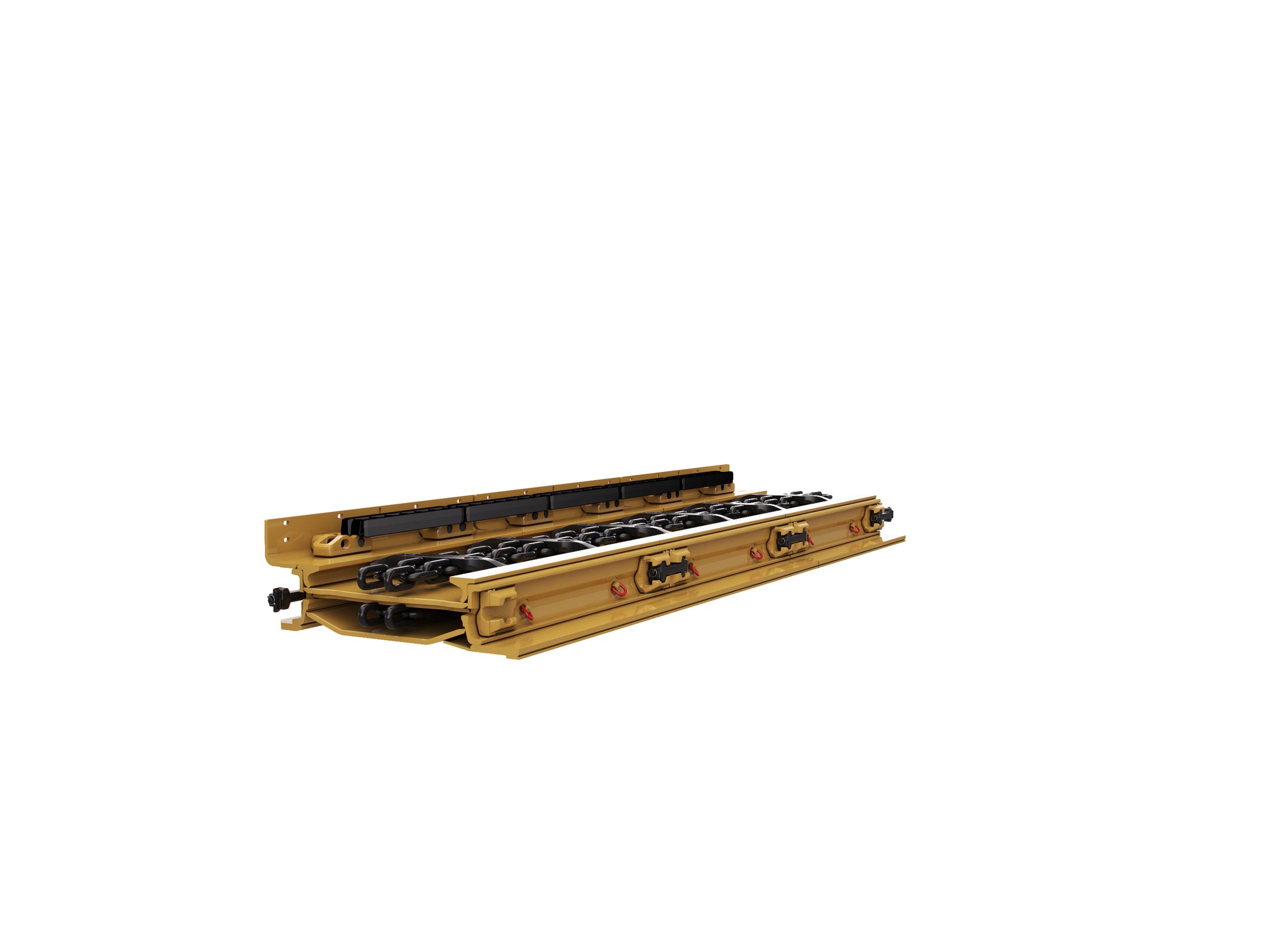

Moving Mountains – No matter how fast your shearer can cut, you can’t keep cutting until you move the coal away from the face. Cat® Armored Face Conveyors (AFCs) are designed to keep things moving and to carry the maximum possible amount of coal smoothly away from the coalface. They are designed for high availability and economy in operation. They are easy to maintain and offer long service life and a great return on investment to mine operators.

Typical Technical Data AFC Line Pan

Top Plate Thickness
30 plus 25 mm (1.18 plus 0.98 in)
Bottom Plate Thickness
1.18 in
Dogbone Breaking Force
1011640.0 lb

Technical Data

Bottom Plate Thickness
1.18 in
Chain Strands
DKB 42×146; DKB 48×160/144
Conveying Capacity - PF6/1042
approx. 0.58 m2 (approx. 6.24 ft2)
Conveying Capacity - PF6/1142
approx. 0.58 m2 (approx. 6.24 ft2)
Conveying Capacity - PF6/1242
approx. 0.72 m2 (approx. 7.75 ft2)
Conveying Capacity - PF6/1342
approx. 0.85 m2 (approx. 9.15 ft2)
Deck Plate Thickness
30 plus 25 mm (1.18 plus 0.98 in)
Dogbone Breaking Strength
4500 kN (505.82 tonf)
Dogbone Housing FoS
1.5 times
Flightbar Width - PF6/1042
34.96 in
Flightbar Width - PF6/1142
38.89 in
Flightbar Width - PF6/1242
42.83 in
Flightbar Width - PF6/1342
46.77 in
Horizontal Articulation
0.8°-1.2°
Line Pan Width - PF6/1042
41.02 in
Line Pan Width - PF6/1142
44.96 in
Line Pan Width - PF6/1242
48.9 in
Line Pan Width - PF6/1342
52.83 in
Profile Height
13.77 in
Shear Strength
> 6000 kN (> 674.42 tonf)
Vertical Articulation
up to ±6°
