Face Conveyor – PF3

Face Conveyor – PF3

Download the Product Brochure
Continue Browsing

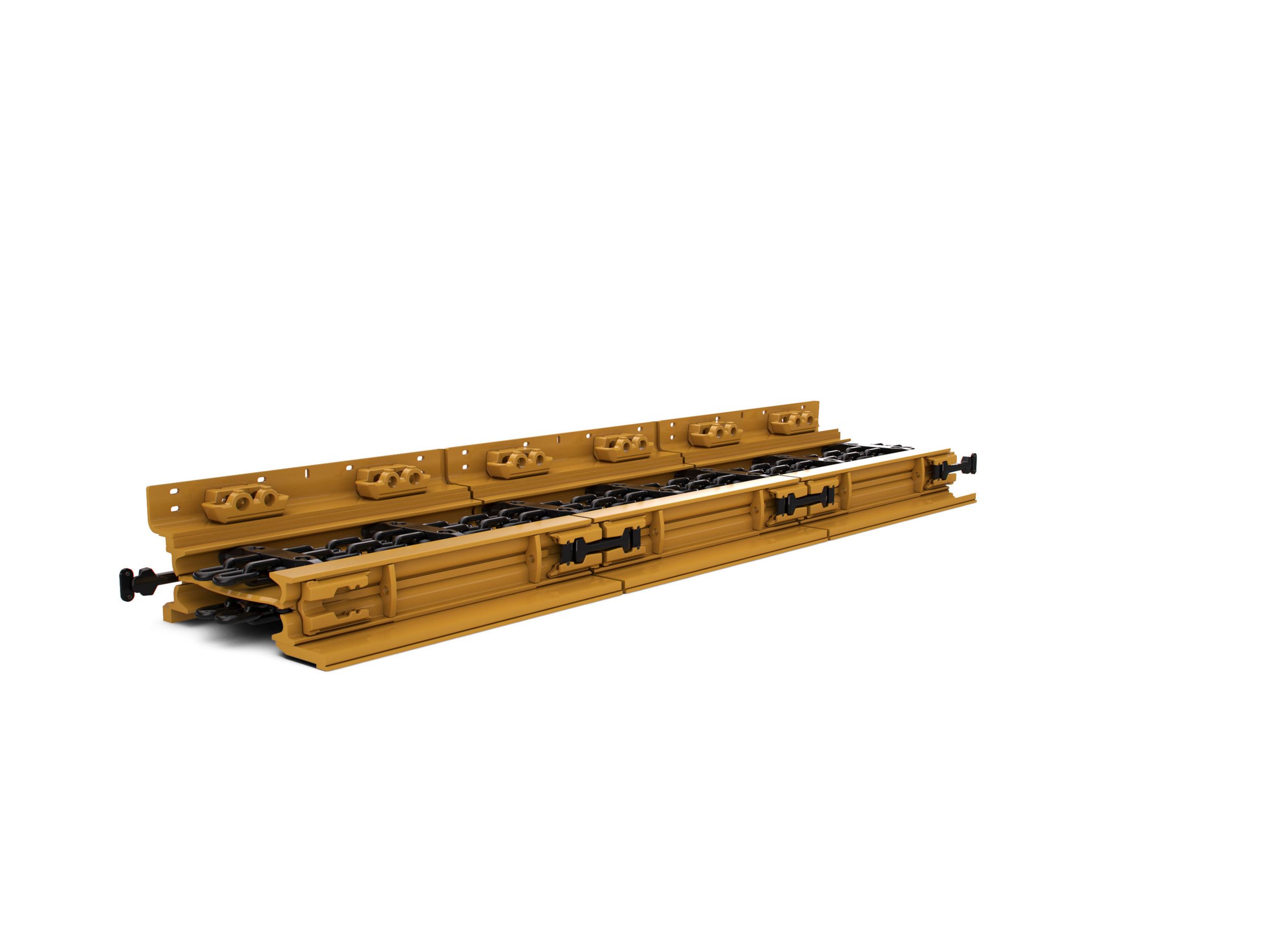

Moving Mountains – No matter how fast your shearer can cut, you can’t keep cutting until you move the coal away from the face. Cat® Armored Face Conveyors (AFCs) are designed to keep things moving and to carry the maximum possible amount of coal smoothly away from the coalface. They are designed for high availability and economy in operation. They are easy to maintain and offer long service life and a great return on investment to mine operators.

Typical Technical Data AFC Line Pan

Top Plate Thickness
30 mm (1.18 in)
Bottom Plate Thickness
0.78 in
Dogbone Breaking Force
449618.0 lb

Technical Data

Bottom Plate Thickness
0.78 in
Chain Strands
DKB 26×92; DKB 30×108; DKB 34×126; DKB 38×137
Conveying Capacity - PF3/722
1.93 ft2
Conveying Capacity - PF3/822
2.8 ft2
Conveying Capacity - PF3/922
3.87 ft2
Deck Plate Thickness
1.18 in
Dogbone Breaking Strength
2000 kN (224.80 tonf)
Dogbone Housing FoS
1.5 times
Flightbar Width - PF3/722
22.91 in
Flightbar Width - PF3/822
26.85 in
Flightbar Width - PF3/922
30.78 in
Horizontal Articulation
0.8°-1.2°
Line Pan Width - PF3/722
28.42 in
Line Pan Width - PF3/822
32.36 in
Line Pan Width - PF3/922
36.3 in
Profile Height
9.6 in
Shear Strength
3000 kN (337.21 tonf)
Vertical Articulation
up to ±6°
