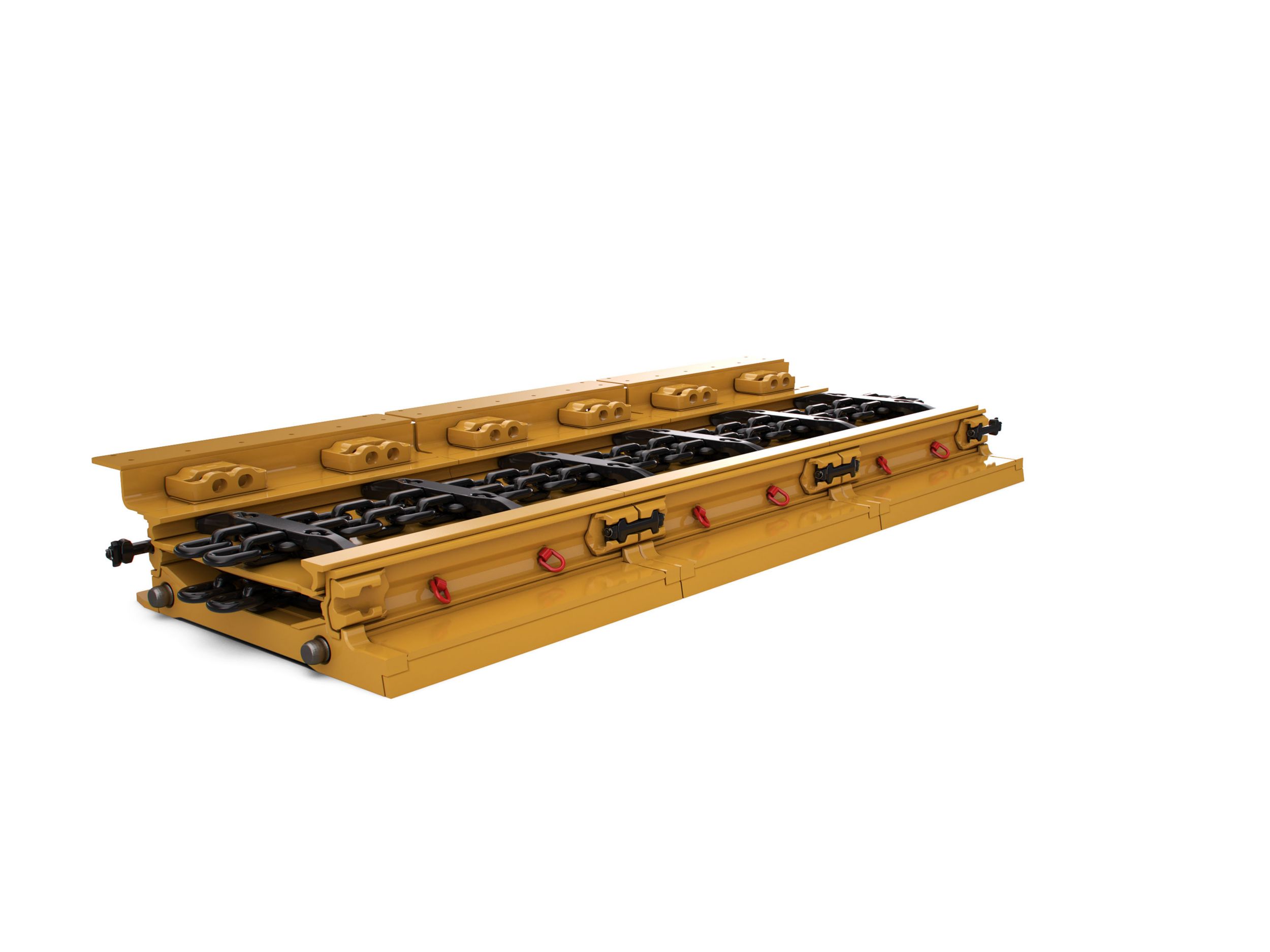

PF7 Face Conveyor

PF7 Face Conveyor

Download the Product Brochure
Continue Browsing

Typical Technical Data AFC Line Pan

Top Plate Thickness
30 + 25 mm (1.18 + 0.98 in)
Bottom Plate Thickness
1.18 in
Dogbone Breaking Force
1011640.0 lb

Technical Data

Bottom Plate Thickness
1.18 in
Chain Strands
DKB 60×135/181
Conveying Capacity - approximate
12.38 ft2
Deck Plate Thickness
30 + 25 mm (1.18 + 0.98 in)
Dogbone Breaking Strength
4500 kN (505.82 tonf)
Dogbone Housing FoS
1.5 times
Flightbar Width
54.65 in
Horizontal Articulation
0.8°-1.2°
Line Pan Width
60.71 in
Profile Height
13.78 in
Shear Strength
> 6000 kN (> 674.43 tonf)
Vertical Articulation
up to ±6°
