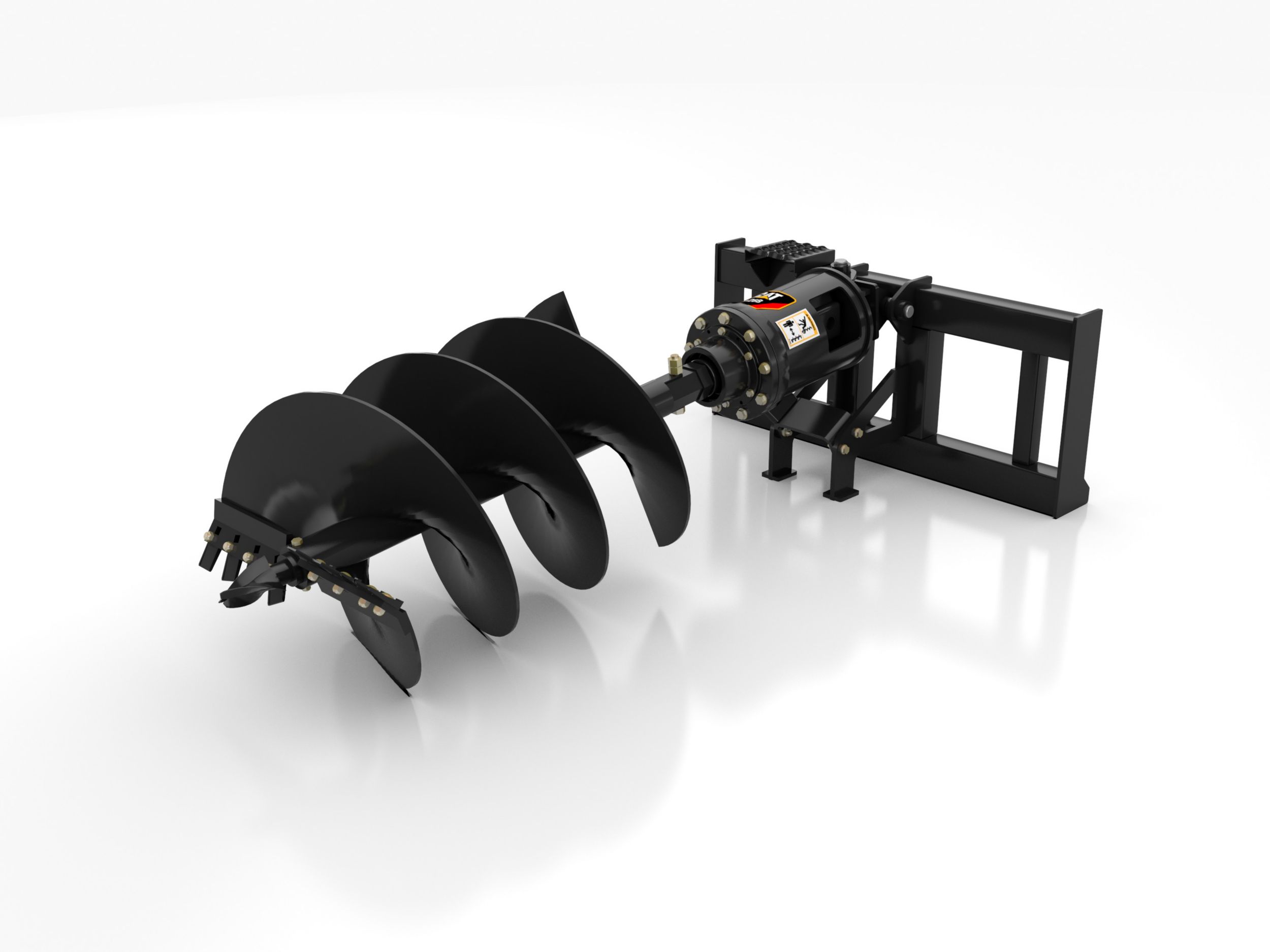

A19B, Drive Unit
A19B, Drive Unit
Continue Browsing- Technical Specs
- Drive shaft torque @ max pressure
- 3040.0 lb ft
- Drive method
- Gerotor Motor - Single Planetary Reduction
- Mounting bracket design
- Mini Hydraulic Excavator
- Maximum hydraulic flow
- 21.0 gal/min
- Maximum hydraulic pressure
- 3336.0 psi
- Overall width w/bracket
- 10.6 in
- Overall drive height
- 32.5 in
- Housing diameter
- 10.0 in
- Swing range
- 72.0 Degrees
- Drive unit wt. w/ hyd. lines w/o bits
- 174.0 lb
- Total weight w/o bits
- 207.0 lb
- HEX output shaft
- 2.0 in
- Bit speed (drive shaft) @ max flow
- 71.0 RPM
- Auger bit retention
- Cross bolt/nuts
